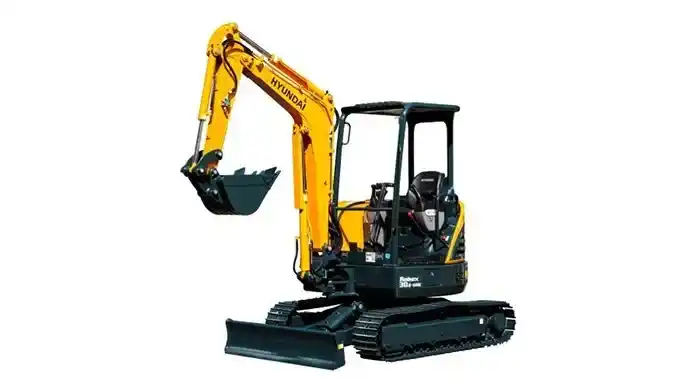

HYUNDAI HX30AZ

Ex-Showroom Price

₹ 27 L - 29.01 L

Diesel

2875 kg

4725 mm

Download HYUNDAI HX30AZ Brochure

Download HYUNDAI HX30AZ brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of HYUNDAI HX30AZ

Engine Power

24.85 HP

Operating Weight

2875 kg

Bucket capacity

0.08 Cu.m

Hydraulic system

76 L/min

Maximum Digging Depth

4725 mm

Boom Height

4.29 m

About HYUNDAI HX30AZ Overview

The Hyundai HX30AZ is a next-generation 3-ton class mini excavator designed for precision, productivity, and efficiency in confined and medium-duty job sites. It is typically powered by a fuel-efficie...

HYUNDAI HX30AZ Specifications & Features

Engine

Engine ModelKubota D1305 (Diesel)

Gross Power18.5 kW

Net Power17.5 kW

Engine Power24.7 HP

Displacement1260 cc

Number of Cylinders3 Nos

Rated RPM2400 rpm

Emission StandardBS IV

Max Torque79 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight2875 kg

Machine Weight2875 kg

Counterweight350 kg

Ground Pressure32 kPa

Hydraulic System

Main Pump TypeVariable Displacement Axial Piston

Maximum Hydraulic Flow56.4 L/min

Maximum System Pressure230 bar

Hydraulic Oil Capacity40 litres

Auxiliary Hydraulic Flow20 L/min

Working Range

Maximum Digging Depth4725 mm

Maximum Vertical Wall Digging Depth2550 mm

Maximum Reach at Ground Level4600 mm

Maximum Dumping Height3790 mm

Maximum Cutting Height4290 mm

Boom Length2.030 m

Arm Length1260 mm

Bucket Breakout Force15 kN

Arm Tear-out Force10 kN

HYUNDAI HX30AZ EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹57,836

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹26,00,000
Interest Amount (12 %)	₹8,70,134
Total Amount Payable	₹34,70,134

HYUNDAI HX30AZ Pros and cons

Pros

24.85 HP Kubota D1305 engine delivers reliable performance.
EU Stage V and EPA Tier 4 Final compliance reduces emissions.
Zero-tail swing design allows safe and efficient work.

Cons

Compact size and 0.08 m³ bucket limit productivity.
An open canopy design offers less protection.
HIgher Maintenance Cost

Download HYUNDAI HX30AZ Brochure PDF

Download HYUNDAI HX30AZ brochure online. Check out the HYUNDAI HX30AZ PDF brochure at Only Heavy with all features and specifications.

HYUNDAI HX30AZ Uses

Excavation

Digging

Construction

Material handling

Trenching
