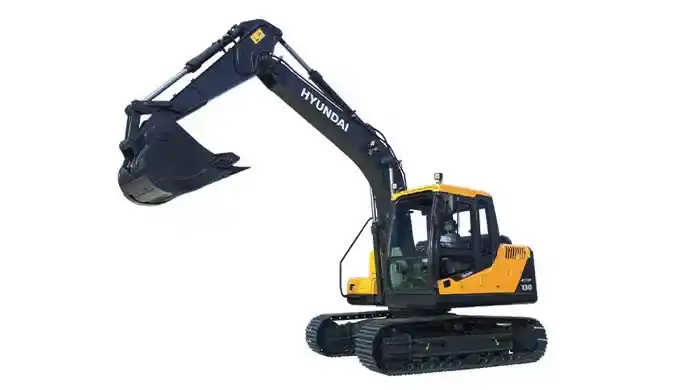

HYUNDAI 130 SMART

Ex-Showroom Price

₹ 56 L - 65 L

Diesel

12100 kg

4770 mm

Download HYUNDAI 130 SMART Brochure

Download HYUNDAI 130 SMART brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of HYUNDAI 130 SMART

Engine Power

94 HP

Operating Weight

12100 kg

Bucket capacity

0.65 Cu.m

Hydraulic system

112 L/min

Maximum Digging Depth

4770 mm

Boom Height

7.9 m

About HYUNDAI 130 SMART Overview

HYUNDAI is a very popular name in the heavy construction equipment segment. HYUNDAI 130 SMART is designed with segment best specification, which helps in providing better work efficiency. The Excavato...

HYUNDAI 130 SMART Specifications & Features

Engine

Engine ModelKirloskar 4R1040T

Gross Power70 kW

Net Power68 kW

Engine Power94 HP

Displacement3900 cc

Number of Cylinders4 Nos

Rated RPM1950 rpm

Emission StandardBS III

Max Torque420 Nm

Fuel TypeDiesel

Operating Weights

Operating Weight12100 kg

Machine Weight11000 kg

Counterweight2600 kg

Ground Pressure38 kPa

Hydraulic System

Main Pump TypeVariable Displacement Axial Piston Pump

Maximum Hydraulic Flow240 L/min

Maximum System Pressure350 bar

Hydraulic Oil Capacity135 litres

Auxiliary Hydraulic Flow90 L/min

Working Range

Maximum Digging Depth4770 mm

Maximum Vertical Wall Digging Depth4070 mm

Maximum Reach at Ground Level7320 mm

Maximum Dumping Height5540 mm

Maximum Cutting Height7900 mm

Boom Length4.300 m

Arm Length1960 mm

Bucket Breakout Force90 kN

Arm Tear-out Force65 kN

HYUNDAI 130 SMART EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,22,344

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹55,00,000
Interest Amount (12 %)	₹18,40,668
Total Amount Payable	₹73,40,668

HYUNDAI 130 SMART Pros and cons

Pros

The 94 HP Kirloskar engine delivers strong performance for a 13 t excavator with good fuel economy.

Ideal for building construction, pipeline work, urban projects, and medium civil jobs.

Exclusive breaker mode improves performance with hydraulic breakers without lugging the engine.

Cons

With a ~4.77 m dig depth, it’s less capable on very deep foundation trenches versus larger excavators.

Used units on online listings show unrealistic pricing spread, complicating comparisons.

In this weight class, machines from competitors (e.g., JCB, Caterpillar) may offer marginally higher bucket forces or dealer support networks.

Download HYUNDAI 130 SMART Brochure PDF

Download HYUNDAI 130 SMART brochure online. Check out the HYUNDAI 130 SMART PDF brochure at Only Heavy with all features and specifications.

HYUNDAI 130 SMART Uses

Excavation

Digging

Construction

Material handling

Trenching
