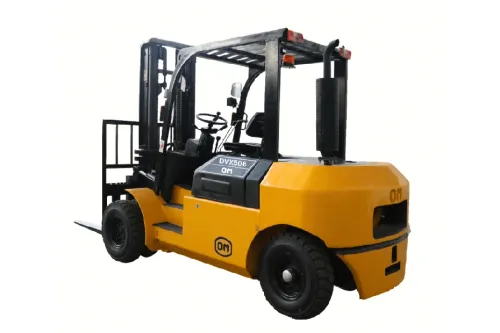

Voltas DVX 1006

Ex-Showroom Price

₹ 8 L - 13 L

Diesel

10000 kg

3.5 m

Download Voltas DVX 1006 Brochure

Download Voltas DVX 1006 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Voltas DVX 1006

Engine Power

100 HP

Operating Weight

10000 kg

Lifting Capacity

10000 kg

Lifting Height

3.5 m

Working Radius

2.4 m

Drive Type

2WD

About Voltas DVX 1006 Overview

The Voltas DVX 1006 comes with an engine which generates adequate amount of Power and Torque. In addition, this engine gives a new dimension to work output to this Voltas DVX 1006.The Voltas DVX 1006 ...

Voltas DVX 1006 Specs & Features

Engine

Engine MakeKirloskar

Engine Model4R1040

Engine Type4-Stroke Diesel Engine

AspirationNaturally Aspirated

Gross Power48 HP

Net Power45 HP

Engine Power100 HP

Engine Displacement2690 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardCPCB Stage II

Max Torque260 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle Plate Dry Clutch

No. of Forward Speeds4

No. of Reverse Speeds2

Gear Box TypeSliding Mesh Gearbox

Differential TypeHeavy Duty Hypoid Differential

Boom & Lifting

Crane TypePick and Carry Mobile Crane

Boom TypeTelescopic Boom

Boom Length14 m

No. of Boom Sections3

Boom Extension TypeHydraulic Telescopic

Max Lifting Height3.5 m

Max Working Radius2.4 m

Rated Capacity

Max Lifting Capacity10 t

Rated Load10 t

Capacity at Min Radius10 tons @ 2 m

Capacity at Max Radius1 ton @ 12 m

Load Moment20 tm

Fly Jib

Fly Jib Length3 m

Fly Jib AvailableYes

Max Height with Fly Jib19 m

Speed

Max Travel Speed25 km/h

Creep Speed1.5 km/h

Dimensions

Overall Length7800 mm

Overall Width2450 mm

Overall Height3100 mm

Wheelbase3400 mm

Min Ground Clearance350 mm

Wheel Track Front1900 mm

Wheel Track Rear1850 mm

Voltas DVX 1006 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹15,571

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹7,00,000
Interest Amount (12 %)	₹2,34,267
Total Amount Payable	₹9,34,267

Voltas DVX 1006 Pros and cons

Pros

Handles up to ~10 t loads efficiently — ideal for heavy materials and industrial use.

Lift height ~3.5 m (dependent on mast), suitable for stacking and warehouse operations.

Cons

Manufacturer doesn’t publicly list engine displacement in cc on some retail sources

Heavy weight (~6–7.5 t) may require sturdy surfaces / handling for transport.

Price range is broad depending on dealer, imported vs. local stock, and optional features.

Download Voltas DVX 1006 Brochure

Download Voltas DVX 1006 brochure online. Check out the Voltas DVX 1006 PDF brochure at Only Heavy with all features and specifications.

Voltas DVX 1006 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
