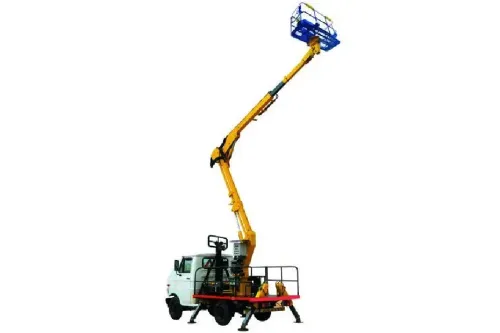

Usha TC14

Ex-Showroom Price

₹ 13 L - 15 L

Diesel

5000 kg

12 m

Download Usha TC14 Brochure

Download Usha TC14 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Usha TC14

Engine Power

74 HP

Operating Weight

5000 kg

Lifting Capacity

5000 kg

Lifting Height

12 m

Working Radius

9 m

Drive Type

2WD

About Usha TC14 Overview

Usha is a very popular name in the heavy construction equipment segment. Usha TC14 is designed with segment best specification, which helps in providing better work efficiency. The Crane model from Us...

Usha TC14 Specs & Features

Engine

Engine MakeTata Motors

Engine Model497 TCIC Diesel

Engine Type4-Stroke Turbocharged Diesel

AspirationTurbocharged Intercooled

Gross Power92 HP

Net Power85 HP

Engine Power74 HP

Engine Displacement1500 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS IV

Max Torque400 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle Plate Dry Clutch

No. of Forward Speeds6

No. of Reverse Speeds1

Gear Box TypeSynchromesh Manual

Differential TypeHypoid Gear Differential

Boom & Lifting

Crane TypeHydraulic Truck Mounted Crane

Boom TypeTelescopic

Boom Length12 m

No. of Boom Sections3

Boom Extension TypeHydraulic Telescopic

Max Lifting Height12 m

Max Working Radius9 m

Rated Capacity

Max Lifting Capacity5 t

Rated Load5 t

Capacity at Min Radius5 tons @ 2 m

Capacity at Max Radius0.8 tons @ 10 m

Load Moment15.7 tm

Fly Jib

Fly Jib Length3 m

Fly Jib AvailableYes

Max Height with Fly Jib17 m

Speed

Max Travel Speed80 km/h

Creep Speed2 km/h

Dimensions

Overall Length7200 mm

Overall Width2400 mm

Overall Height3200 mm

Wheelbase3800 mm

Min Ground Clearance260 mm

Wheel Track Front1800 mm

Wheel Track Rear1700 mm

Usha TC14 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹26,693

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹12,00,000
Interest Amount (12 %)	₹4,01,600
Total Amount Payable	₹16,01,600

Usha TC14 Pros and cons

Pros

Cost-Effective: Significantly cheaper (₹13-15L) than fully integrated pick-and-carry cranes (which often cost ₹18-23L+).

Heavy Duty Structure: Marketing materials highlight "segment-best specification" and high structural strength for heavy loading.

Durability: Noted for durable components and suitability for continuous heavy-duty tasks.

Cons

Limited Technical Data: detailed specifications (engine, reach, radius) are scarce or "Unavailable" compared to major competitors like ACE or Escorts.

Lower Capacity: The 5-ton capacity is lower than the model name "TC14" might suggest (where competitors use "14" for 14-ton cranes), potentially causing confusion.

Dependency: Performance (travel speed, torque) is entirely dependent on the truck chassis you mount it on.

Download Usha TC14 Brochure

Download Usha TC14 brochure online. Check out the Usha TC14 PDF brochure at Only Heavy with all features and specifications.

Usha TC14 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
