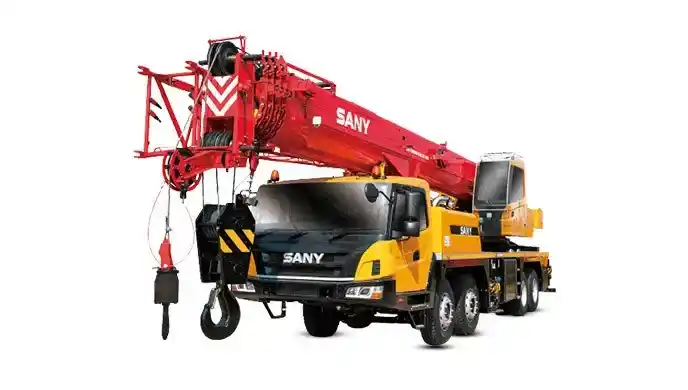

SANY STC500C

Ex-Showroom Price

₹ 27 L - 55 L

Diesel

50000 kg

43 m

Download SANY STC500C Brochure

Download SANY STC500C brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY STC500C

Engine Power

335 HP

Operating Weight

42000 kg

Lifting Capacity

50000 kg

Lifting Height

43 m

Working Radius

3 m

Drive Type

4WD

About SANY STC500C Overview

SANY is a very popular name in the heavy construction equipment segment. SANY STC500C is designed with segment best specification, which helps in providing better work efficiency. The Crane model from...

SANY STC500C Specs & Features

Engine

Engine MakeWeichai

Engine ModelWP10.375E53

Engine Type4-stroke, water-cooled, direct injection diesel

AspirationTurbocharged & Intercooled

Gross Power276 HP

Net Power268 HP

Engine Power335 HP

Engine Displacement9276 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2100

Emission StandardEuro V

Max Torque1550 Nm

Power Train

Transmission TypeManual

Drive Type4WD

Clutch TypeDry single plate, hydraulic assisted

No. of Forward Speeds10

No. of Reverse Speeds2

Gear Box TypeSynchromesh

Differential TypeHeavy-duty hypoid

Boom & Lifting

Crane TypeTruck-mounted hydraulic telescopic crane

Boom Type5-section U-shaped telescopic boom

Boom Length11 - 43 m

No. of Boom Sections5

Boom Extension TypeHydraulic

Max Lifting Height43 m

Max Working Radius3 m

Rated Capacity

Max Lifting Capacity50 t

Rated Load50 t

Capacity at Min Radius50t@3

Capacity at Max Radius1.2t@38

Load Moment1960 tm

Fly Jib

Fly Jib Length16 m

Fly Jib AvailableYes

Max Height with Fly Jib59.5 m

Speed

Max Travel Speed85 km/h

Creep Speed2.5 km/h

Dimensions

Overall Length13700 mm

Overall Width2800 mm

Overall Height3850 mm

Wheelbase7000 mm

Min Ground Clearance285 mm

Wheel Track Front2300 mm

Wheel Track Rear2070 mm

SANY STC500C EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹57,836

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹26,00,000
Interest Amount (12 %)	₹8,70,134
Total Amount Payable	₹34,70,134

SANY STC500C Pros and cons

Pros

Strong 50 t rated lifting capacity for heavy jobs.

Long telescopic boom with optional jib increases reach up to ~59.5 m.

Integrated load moment indicator (LMI) and sensor systems.

Cons

Variable dealer support & parts availability reported in some regions for SANY equipment (industry community mentions mixed experiences)

Some owners report electronics or service network issues in long-term use.

Specs like engine output and displacement may vary by regional configuration and emission standards (Euro III, IV, V etc.).

Download SANY STC500C Brochure

Download SANY STC500C brochure online. Check out the SANY STC500C PDF brochure at Only Heavy with all features and specifications.

SANY STC500C Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
