SANY STC1300C

Ex-Showroom Price

₹ 1.10 Cr - 1.50 Cr

Diesel

130000 kg

94 m

Download SANY STC1300C Brochure

Download SANY STC1300C brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of SANY STC1300C

Engine Power

400 HP

Operating Weight

60000 kg

Lifting Capacity

130000 kg

Lifting Height

94 m

Working Radius

60 m

Drive Type

4WD

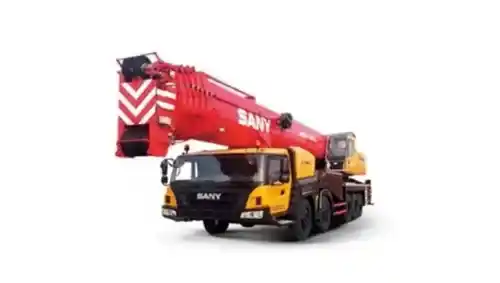

About SANY STC1300C Overview

The SANY STC1300C is a high-capacity 130-ton class truck crane engineered to deliver exceptional lifting power, mobility, and operational efficiency for large-scale construction, infrastructure, and i...

SANY STC1300C Specs & Features

Engine

Engine MakeWeichai

Engine ModelWP12.400

Engine TypeDiesel

AspirationTurbocharged

Gross Power294 HP

Net Power280 HP

Engine Power400 HP

Engine Displacement11596 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM6

Emission StandardBS IV

Max Torque2100 Nm

Power Train

Transmission TypeManual / Mechanical

Drive Type4WD

Clutch TypeDry Single Plate

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeSynchromesh

Differential TypeHeavy Duty

Boom & Lifting

Crane TypeHydraulic Truck Crane

Boom TypeTelescopic

Boom Length60 m

No. of Boom Sections55

Boom Extension TypeHydraulic

Max Lifting Height94 m

Max Working Radius60 m

Rated Capacity

Max Lifting Capacity130000 t

Rated Load130 t

Capacity at Min Radius130 t @ 3 m

Capacity at Max Radius6 t @ 50 m

Load Moment4800 tm

Fly Jib

Fly Jib Length18 m

Fly Jib AvailableYes

Max Height with Fly Jib78 m

Speed

Max Travel Speed85 km/h

Creep Speed2 km/h

Dimensions

Overall Length15000 mm

Overall Width3000 mm

Overall Height3950 mm

Wheelbase1350 mm

Min Ground Clearance300 mm

Wheel Track Front2400 mm

Wheel Track Rear2400 mm

SANY STC1300C EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,42,464

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,09,00,000
Interest Amount (12 %)	₹36,47,869
Total Amount Payable	₹1,45,47,869

SANY STC1300C Pros and cons

Pros

High Lifting Capacity
Long Boom Length
Powerful Diesel Engine

Cons

High Initial Cost
High Fuel Consumption
Requires Skilled Operator

Download SANY STC1300C Brochure

Download SANY STC1300C brochure online. Check out the SANY STC1300C PDF brochure at Only Heavy with all features and specifications.

SANY STC1300C Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
