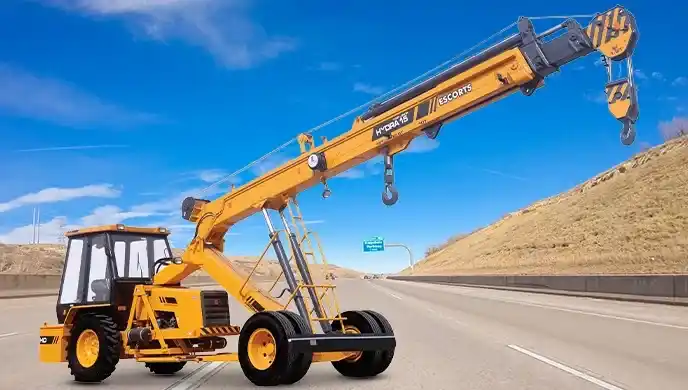

ESCORTS Hydra 15 Top Jack

Ex-Showroom Price

₹ 19 L - 23 L

Diesel

15000 kg

17.2 m

Download ESCORTS Hydra 15 Top Jack Brochure

Download ESCORTS Hydra 15 Top Jack brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ESCORTS Hydra 15 Top Jack

Engine Power

50 HP

Operating Weight

12050 kg

Lifting Capacity

15000 kg

Lifting Height

17.2 m

Working Radius

8.8 m

Drive Type

2WD

About ESCORTS Hydra 15 Top Jack Overview

ESCORTS Hydra 15 Top Jack is a highly popular crane in India. ESCORTS Hydra 15 Top Jack is quite justifiable, given the features it offers. The ESCORTS Hydra 15 Top Jack comes with the ideal boom leng...

ESCORTS Hydra 15 Top Jack Specs & Features

Engine

Engine MakeEscorts Kubota

Engine ModelE4.391 NA

Engine Type4-stroke, water-cooled, direct-injection diesel engine

AspirationNaturally Aspirated

Gross Power37 HP

Net Power35 HP

Engine Power50 HP

Engine Displacement3900 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardStage IIIA

Max Torque220 Nm

Power Train

Transmission TypeMechanical transmission with torque converter

Drive Type2WD

Clutch TypeSingle plate dry friction clutch

No. of Forward Speeds8

No. of Reverse Speeds2

Gear Box TypeConstant mesh gearbox

Differential TypeHeavy-duty bevel gear differential

Boom & Lifting

Crane TypePick & Carry Hydraulic Mobile Crane (Top Jack Variant)

Boom TypeTelescopic box-section hydraulic boom

Boom Length17.2 m

No. of Boom Sections4

Boom Extension TypeHydraulic

Max Lifting Height17.2 m

Max Working Radius8.8 m

Rated Capacity

Max Lifting Capacity15 t

Rated Load15 t

Capacity at Min Radius15 [email protected] m

Capacity at Max Radius3.0 t @ 8.5 m

Load Moment27 tm

Fly Jib

Fly Jib Length2.5 m

Fly Jib AvailableYes

Max Height with Fly Jib19.5 m

Speed

Max Travel Speed30 km/h

Creep Speed1.7 km/h

Dimensions

Overall Length10600 mm

Overall Width2480 mm

Overall Height3180 mm

Wheelbase4550 mm

Min Ground Clearance380 mm

Wheel Track Front1840 mm

Wheel Track Rear1690 mm

ESCORTS Hydra 15 Top Jack EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹40,040

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹18,00,000
Interest Amount (12 %)	₹6,02,400
Total Amount Payable	₹24,02,400

ESCORTS Hydra 15 Top Jack Pros and cons

Pros

Solid lifting performance — 15 t capacity for mid-heavy lifting tasks.

Reliable diesel engine — proven 50 HP Escorts Kubota unit.

Compact design — reasonable turning radius (~7 m) for site maneuverability.

Cons

Limited drive traction — 2WD only means less off-road capability compared to 4WD cranes.

Moderate lift height — 17.2 m is lower than some higher-boom peers.

Smaller service tanks — e.g., fuel (38 L) and hydraulic (~83 L) compared with larger cranes.

Download ESCORTS Hydra 15 Top Jack Brochure

Download ESCORTS Hydra 15 Top Jack brochure online. Check out the ESCORTS Hydra 15 Top Jack PDF brochure at Only Heavy with all features and specifications.

ESCORTS Hydra 15 Top Jack Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
