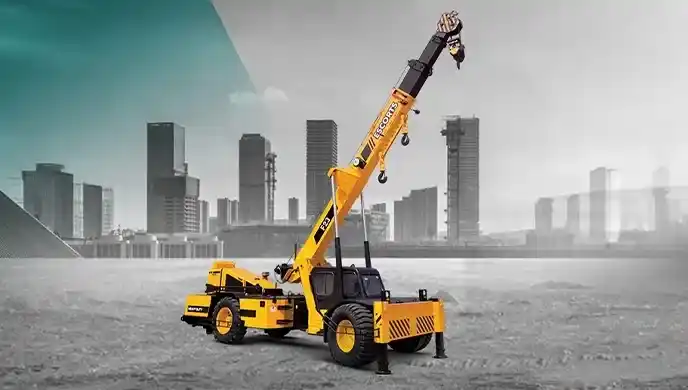

ESCORTS F23 2wd

Ex-Showroom Price

₹ 45 L - 45 L

Diesel

23000 kg

20.1 m

Download ESCORTS F23 2wd Brochure

Download ESCORTS F23 2wd brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ESCORTS F23 2wd

Engine Power

101 HP

Operating Weight

21950 kg

Lifting Capacity

23000 kg

Lifting Height

20.1 m

Working Radius

16.6 m

Drive Type

2WD

About ESCORTS F23 2wd Overview

ESCORTS F23 2wd is a highly popular crane in India. ESCORTS F23 2wd is quite justifiable, given the features it offers. The ESCORTS F23 2wd comes with the ideal boom length. In addition,The ESCORTS F2...

ESCORTS F23 2wd Specs & Features

Engine

Engine MakeVolvo Eicher Commercial Vehicles (VECV)

Engine ModelE494 Turbocharged Diesel

Engine Type4-stroke, water-cooled diesel

AspirationTurbocharged

Gross Power75 HP

Net Power74 HP

Engine Power101 HP

Engine Displacement4800 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS IV

Max Torque400 Nm

Power Train

Transmission TypeManual synchromesh

Drive Type4WD

Clutch TypeSingle plate, dry friction, hydraulically actuated

No. of Forward Speeds10

No. of Reverse Speeds2

Gear Box TypeSynchromesh with auxiliary high/low range

Differential TypeHeavy-duty hypoid differential

Boom & Lifting

Crane TypePick & Carry Mobile Crane

Boom TypeHigh-tensile steel telescopic boom

Boom Length21 m

No. of Boom Sections4

Boom Extension TypeFully hydraulic synchronized telescoping

Max Lifting Height20.1 m

Max Working Radius16.6 m

Rated Capacity

Max Lifting Capacity23 t

Rated Load23 t

Capacity at Min Radius[email protected]

Capacity at Max Radius[email protected]

Load Moment38 tm

Fly Jib

Fly Jib Length2.2 m

Fly Jib AvailableYes

Max Height with Fly Jib22.3 m

Speed

Max Travel Speed40 km/h

Creep Speed1.3 km/h

Dimensions

Overall Length7850 mm

Overall Width2850 mm

Overall Height3450 mm

Wheelbase3600 mm

Min Ground Clearance420 mm

Wheel Track Front2250 mm

Wheel Track Rear2250 mm

ESCORTS F23 2wd EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹97,876

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹44,00,000
Interest Amount (12 %)	₹14,72,534
Total Amount Payable	₹58,72,534

ESCORTS F23 2wd Pros and cons

Pros

High lifting capacity: 23 t makes it suitable for heavy industrial & civil work.

Powerful engine: ~101 HP with turbocharged HPCR system for robust performance.

Long reach: 20.1 m boom and ~22.3 m hook height (w/ fly jib) enables tall lifts

Cons

Higher price range: ₹45–47 L is above many lighter crane alternatives.

Heavy operating weight (~22 t): Transport and site access may require planning.

Large turning radius (~8.25 m): Needs ample maneuvering space on tight job sites.

Download ESCORTS F23 2wd Brochure

Download ESCORTS F23 2wd brochure online. Check out the ESCORTS F23 2wd PDF brochure at Only Heavy with all features and specifications.

ESCORTS F23 2wd Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
