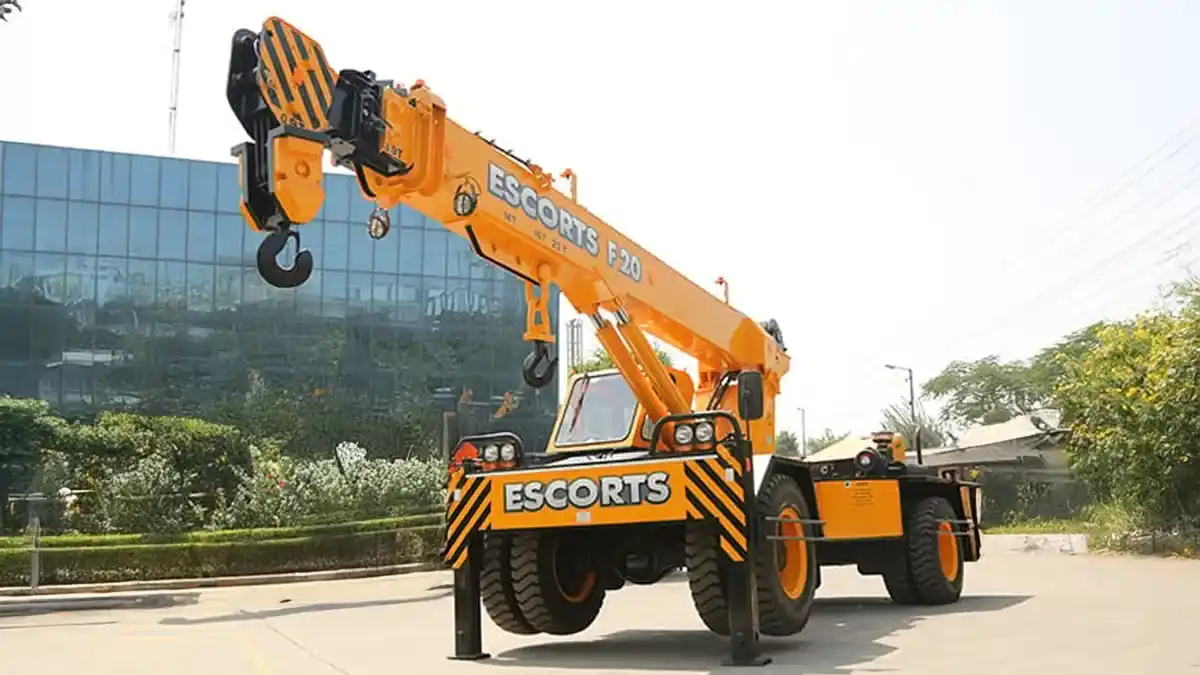

ESCORTS F20

Ex-Showroom Price

₹ 41 L - 44 L

Diesel

20000 kg

20 m

Download ESCORTS F20 Brochure

Download ESCORTS F20 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ESCORTS F20

Engine Power

101 HP

Operating Weight

20000 kg

Lifting Capacity

20000 kg

Lifting Height

20 m

Working Radius

16 m

Drive Type

4WD

About ESCORTS F20 Overview

ESCORTS F20 is a highly popular Crane in India. In addition the max travel speed of the ESCORTS F20 crane is 40 Kmph.SCORTS F20 comes with an engine which generates a power of 101 HP. In addition, thi...

ESCORTS F20 Specs & Features

Engine

Engine MakeCummins

Engine Model6BT5.9-C150

Engine Type4-Stroke Diesel

AspirationTurbocharged & Intercooled

Gross Power89 HP

Net Power90 HP

Engine Power101 HP

Engine Displacement5700 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2200

Emission StandardEuro III / Bharat Stage III

Max Torque760 Nm

Power Train

Transmission TypeZF 6-speed Automatic

Drive Type4WD

Clutch TypeHydraulic Torque Converter

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeAutomatic Powershift

Differential TypeLimited Slip

Boom & Lifting

Crane TypeHydraulic Truck Crane

Boom TypeTelescopic

Boom Length8 – 28 m m

No. of Boom Sections4

Boom Extension TypeHydraulic Telescopic

Max Lifting Height20 m

Max Working Radius16 m

Rated Capacity

Max Lifting Capacity20 t

Rated Load20 t

Capacity at Min Radius20 t @ 3 m

Capacity at Max Radius2 t @ 24 m

Load Moment400 tm

Fly Jib

Fly Jib Length10 m

Fly Jib AvailableYes

Max Height with Fly Jib32 m

Speed

Max Travel Speed70 km/h

Creep Speed1 km/h

Dimensions

Overall Length10500 mm

Overall Width2500 mm

Overall Height3400 mm

Wheelbase4500 mm

Min Ground Clearance300 mm

Wheel Track Front2000 mm

Wheel Track Rear2000 mm

ESCORTS F20 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹88,978

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹40,00,000
Interest Amount (12 %)	₹13,38,667
Total Amount Payable	₹53,38,667

ESCORTS F20 Pros and cons

Pros

Lifts up to 20 tons, making heavy and high lifting easier.

Short turning radius of 8.25 m allows easy operation in narrow or crowded areas

Top speed 40 km/h allows fast site movement.

Cons

Safety features like fire extinguisher, man-carrying basket and drag winch are optional

Heavy weight: While good for stability, may incur higher transport/logistic cost.

Lower maximum travel speed: ~38–40 km/h max road speed — slower than some hydraulic cranes.

Download ESCORTS F20 Brochure

Download ESCORTS F20 brochure online. Check out the ESCORTS F20 PDF brochure at Only Heavy with all features and specifications.

ESCORTS F20 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
