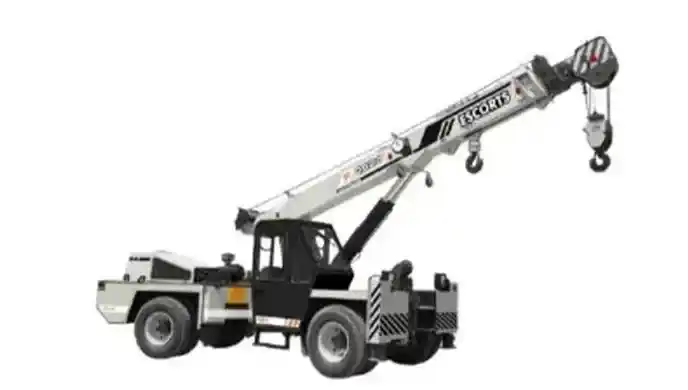

ESCORTS F 1621

Ex-Showroom Price

₹ 28 L - 31 L

Diesel

16000 kg

18 m

Download ESCORTS F 1621 Brochure

Download ESCORTS F 1621 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ESCORTS F 1621

Engine Power

101 HP

Operating Weight

16000 kg

Lifting Capacity

16000 kg

Lifting Height

18 m

Working Radius

15 m

Drive Type

4WD

About ESCORTS F 1621 Overview

ESCORTS F 1621 is a highly popular Crane in India. The price range of this construction equipment starts from ₹ 29 Lakh and goes up to ₹ 31 Lakh. In addition the max travel speed of the ESCORTS F 1621...

ESCORTS F 1621 Specs & Features

Engine

Engine MakeCummins

Engine Model6CTAA8.3-C215

Engine Type4-Stroke Diesel

AspirationTurbocharged & Intercooled

Gross Power93 HP

Net Power90 HP

Engine Power101 HP

Engine Displacement3876 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS III / Euro III

Max Torque850 Nm

Power Train

Transmission TypeZF 6-speed Automatic

Drive Type4WD

Clutch TypeHydraulic Torque Converter

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeAutomatic Powershift

Differential TypeLimited Slip

Boom & Lifting

Crane TypeHydraulic Truck Crane

Boom TypeTelescopic

Boom Length10 – 32 m m

No. of Boom Sections4

Boom Extension TypeHydraulic Telescopic

Max Lifting Height18 m

Max Working Radius15 m

Rated Capacity

Max Lifting Capacity16 t

Rated Load16 t

Capacity at Min Radius16 t @ 3 m

Capacity at Max Radius3 t @ 28 m

Load Moment400 tm

Fly Jib

Fly Jib Length12 m

Fly Jib AvailableYes

Max Height with Fly Jib36 m

Speed

Max Travel Speed65 km/h

Creep Speed1 km/h

Dimensions

Overall Length11200 mm

Overall Width2550 mm

Overall Height3600 mm

Wheelbase4700 mm

Min Ground Clearance330 mm

Wheel Track Front2050 mm

Wheel Track Rear2050 mm

ESCORTS F 1621 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹60,060

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹27,00,000
Interest Amount (12 %)	₹9,03,601
Total Amount Payable	₹36,03,601

ESCORTS F 1621 Pros and cons

Pros

16 t class capacity suitable for industrial lifting, construction and material handling.

18 m boom height and ~15.8 m radius give good reach for most site tasks

Four-wheel drive traction enhances mobility on site surfaces vs 2WD.

Cons

Exact cc not readily available in public spec sheets — makes direct comparisons harder.

Lifting capacity drops significantly at extended radius (~0.92 t @ ~15.8 m).

Lower creep speed (~1.3 km/h) standard for safety but limits repositioning speed.

Download ESCORTS F 1621 Brochure

Download ESCORTS F 1621 brochure online. Check out the ESCORTS F 1621 PDF brochure at Only Heavy with all features and specifications.

ESCORTS F 1621 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
