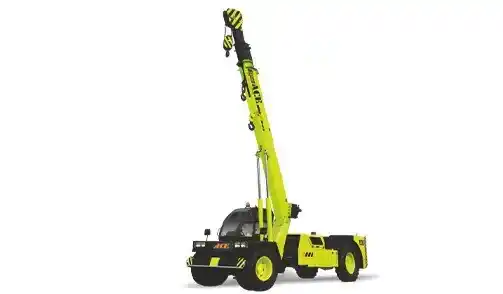

ACE TX 130

Ex-Showroom Price

₹ 30 L - 32 L

Diesel

13000 kg

12 m

Download ACE TX 130 Brochure

Download ACE TX 130 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE TX 130

Engine Power

47.5 HP

Operating Weight

13000 kg

Lifting Capacity

13000 kg

Lifting Height

12 m

Working Radius

7 m

Drive Type

2WD

About ACE TX 130 Overview

ACE TX 130 comes with an engine which generates a power of 47.5 HP. In addition, this engine gives a new dimension to work output to this ACE TX 130.The ACE TX 130 comes with an operating weight of 13...

ACE TX 130 Specs & Features

Engine

Engine MakeMahindra 4485 IAE (BS‑III CEV)

Engine Model4485 IAE

Engine Type4‑cylinder, water‑cooled diesel

AspirationNaturally aspirated

Gross Power35 HP

Net Power34 HP

Engine Power47.5 HP

Engine Displacement3000 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS‑III CEV

Max Torque170 Nm

Power Train

Transmission TypeHeavy‑duty sliding mesh with high/low range selector

Drive Type2WD

Clutch TypeHydraulically operated heavy‑duty dry friction clutch

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeSliding mesh with high/low range

Differential TypeConventional geared differential

Boom & Lifting

Crane TypePick & Carry Hydraulic Crane

Boom Type3‑part slotted telescopic boom with hydraulic extension

Boom Length9 m

No. of Boom Sections3

Boom Extension TypeHydraulic synchronized extension

Max Lifting Height12 m

Max Working Radius7 m

Rated Capacity

Max Lifting Capacity13 t

Rated Load13 t

Capacity at Min Radius13T @ ~2–3

Capacity at Max Radius2.5–3.5T @ ~7

Load Moment70 tm

Fly Jib

Fly Jib Length6 m

Fly Jib AvailableYes

Max Height with Fly Jib17 m

Speed

Max Travel Speed28 km/h

Creep Speed7 km/h

Dimensions

Overall Length6800 mm

Overall Width2400 mm

Overall Height3000 mm

Wheelbase4600 mm

Min Ground Clearance400 mm

Wheel Track Front1800 mm

Wheel Track Rear1800 mm

ACE TX 130 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹64,509

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹29,00,000
Interest Amount (12 %)	₹9,70,534
Total Amount Payable	₹38,70,534

ACE TX 130 Pros and cons

Pros

Affordable Price Range: Budget‑friendly (~₹31–33 L) for 13 T capacity mobile crane compared to larger models.

Compact & Lighter: Lower operating weight (~12.9 t) makes it easier to transport/access tighter sites.

Good Boom Reach: ~12.8 m lift height is useful for site placements in urban/metropolitan jobs.

Cons

Lower Engine Power: 47.5 HP is modest; may struggle on steep or highly loaded terrains vs larger cranes.

2WD Only: 2‑wheel drive limits traction in rough or off‑road conditions compared to 4WD cranes.

Smaller Boom & Capacity: 13 T lifting and ~12.8 m height are lower than mid/large cranes for bigger projects.

Download ACE TX 130 Brochure

Download ACE TX 130 brochure online. Check out the ACE TX 130 PDF brochure at Only Heavy with all features and specifications.

ACE TX 130 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction

ACE TX 130 Loan Offers

Operating Weight

0.7 ton

Ex-showroom Price

₹ 5 L - 7 L

View Details

Calculate your Monthly Fuel Cost

Working hours per day6

Fuel consumption per hour (Litres)8

Diesel price in your city95

Working days per month26

The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

Daily Fuel Usage (Litres)

48 Litres Per Day

Daily Fuel Cost

₹4560 Per Day

Monthly Fuel Cost

₹118560 Per Month
