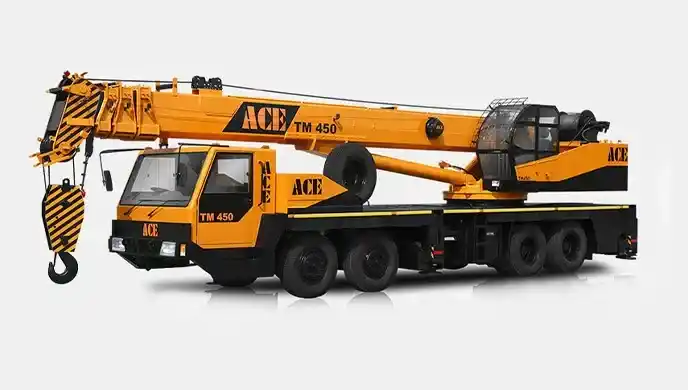

ACE TM 450

Ex-Showroom Price

₹ 1.35 Cr - 1.45 Cr

Diesel

45000 kg

33 m

Download ACE TM 450 Brochure

Download ACE TM 450 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE TM 450

Engine Power

274 HP

Operating Weight

45000 kg

Lifting Capacity

45000 kg

Lifting Height

33 m

Working Radius

18 m

Drive Type

4WD

About ACE TM 450 Overview

ACE TM 450 comes with an engine which generates a power of 274 HP. In addition, this engine gives a new dimension to work output to this ACE TM 450.The ACE TM 450 comes with an operating weight of 45 ...

ACE TM 450 Specs & Features

Engine

Engine MakeMahindra

Engine ModelTurbo‑charged intercooler diesel

Engine TypeTurbocharged Diesel

AspirationTurbocharged & Intercooled

Gross Power205 HP

Net Power195 HP

Engine Power49.5 HP

Engine Displacement8000 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS‑III/BS‑IV

Max Torque1000 Nm

Power Train

Transmission TypeDiesel Engine to Transmission

Drive Type2WD

Clutch TypeSingle plate dry type

No. of Forward Speeds9

No. of Reverse Speeds2

Gear Box TypeSynchromesh

Differential TypeStandard road diff

Boom & Lifting

Crane TypeTruck‑Mounted Telescopic Crane

Boom TypeTelescopic

Boom Length33 m

No. of Boom Sections6

Boom Extension TypeHydraulic Telescopic

Max Lifting Height20 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity16 t

Rated Load16 t

Capacity at Min Radius16t @ 3 m

Capacity at Max Radius3 t @ 24 m

Load Moment100 tm

Fly Jib

Fly Jib Length8.5 m

Fly Jib AvailableYes

Max Height with Fly Jib40 m

Speed

Max Travel Speed49 km/h

Creep Speed10 km/h

Dimensions

Overall Length7800 mm

Overall Width2500 mm

Overall Height3500 mm

Wheelbase4200 mm

Min Ground Clearance250 mm

Wheel Track Front2000 mm

Wheel Track Rear2000 mm

ACE TM 450 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹2,98,076

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹1,34,00,000
Interest Amount (12 %)	₹44,84,536
Total Amount Payable	₹1,78,84,536

ACE TM 450 Pros and cons

Pros

The 45 t capacity is suitable for most heavy construction, industrial & infrastructure lifting jobs.

274 HP engine and robust gearbox provide good travel speed (~49 km/h) and lifting ability

33.2 m boom with ~8.5 m jib allows extended working radius and height handling flexibility.

Cons

No official cc figure from ACE makes direct engine comparison with competitors harder.

₹ 1.35 Cr – ₹ 1.45 Cr ex‑showroom investment plus on‑road charges and regular maintenance

Actual safe working radius varies with load charts and boom configuration — operators need careful load planning.

Download ACE TM 450 Brochure

Download ACE TM 450 brochure online. Check out the ACE TM 450 PDF brochure at Only Heavy with all features and specifications.

ACE TM 450 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
