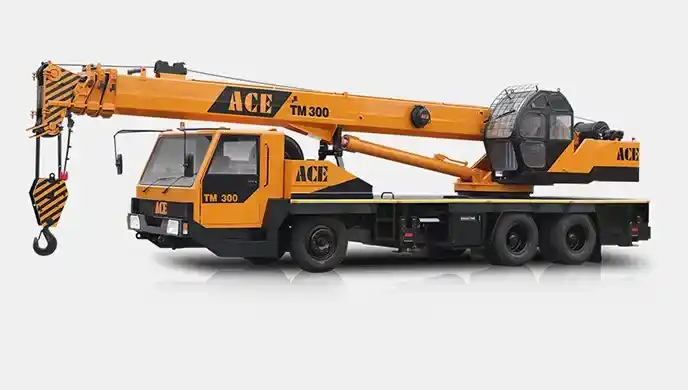

ACE TM 300

Ex-Showroom Price

₹ 41 L - 45 L

Diesel

30000 kg

32 m

Download ACE TM 300 Brochure

Download ACE TM 300 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE TM 300

Engine Power

165 HP

Operating Weight

30000 kg

Lifting Capacity

30000 kg

Lifting Height

32 m

Working Radius

30 m

Drive Type

4WD

About ACE TM 300 Overview

ACE TM 300 is a highly popular Crane in India. In addition the max travel speed of the ACE TM 300 crane is 60 Kmph.ACE TM 300 comes with an engine which generates a power of 165 HP. In addition, this ...

ACE TM 300 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelH Series 4 Cylinder CRS

Engine Type4-Stroke, Turbocharged Diesel Engine

AspirationTurbocharged with Intercooler

Gross Power125 HP

Net Power118 HP

Engine Power165 HP

Engine Displacement3839 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS6

Max Torque600 Nm

Power Train

Transmission TypeManual

Drive Type4WD

Clutch TypeSingle Plate, Dry Type, Hydraulic Actuated

No. of Forward Speeds6

No. of Reverse Speeds1

Gear Box TypeSynchromesh

Differential TypeHeavy Duty Hypoid with Differential Lock

Boom & Lifting

Crane TypeTruck Mounted Telescopic Crane

Boom TypeFully Hydraulic Telescopic Boom

Boom Length10 - 32 m

No. of Boom Sections4

Boom Extension TypeHydraulic Telescopic

Max Lifting Height32 m

Max Working Radius30 m

Rated Capacity

Max Lifting Capacity30 t

Rated Load30 t

Capacity at Min Radius30 tons @ 3 m

Capacity at Max Radius3.5 tons @ 26 m

Load Moment90 tm

Fly Jib

Fly Jib Length9 m

Fly Jib AvailableYes

Max Height with Fly Jib42 m

Speed

Max Travel Speed85 km/h

Creep Speed2 km/h

Dimensions

Overall Length11500 mm

Overall Width2500 mm

Overall Height3500 mm

Wheelbase4800 mm

Min Ground Clearance320 mm

Wheel Track Front1950 mm

Wheel Track Rear1880 mm

ACE TM 300 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹88,978

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹40,00,000
Interest Amount (12 %)	₹13,38,667
Total Amount Payable	₹53,38,667

ACE TM 300 Pros and cons

Pros

30 t capacity is strong for mid-range truck-crane applications such as general construction, utilities work, industrial lifts, and material handling.

Boom extends to ~32 m + jib, offering good vertical reach and versatility on larger sites.

Truck-mounted design allows fast relocations between job sites without separate transport.

Cons

No official ACE specification list shows cc — makes direct comparison with rivals harder.

Starting at ~₹ 42 L ex-showroom, it’s costlier than simpler pick-and-carry cranes or smaller truck cranes.

Outriggers must be properly deployed on uneven ground for safe lifts, which adds setup time compared with some rough-terrain cranes.

Download ACE TM 300 Brochure

Download ACE TM 300 brochure online. Check out the ACE TM 300 PDF brochure at Only Heavy with all features and specifications.

ACE TM 300 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
