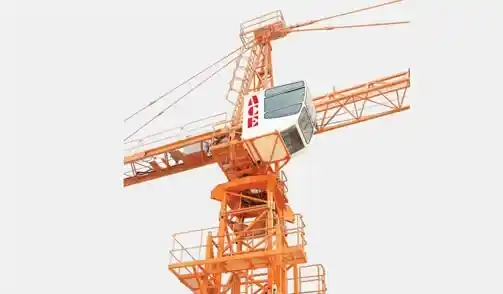

ACE TC 7054

Ex-Showroom Price

₹ 13 L - 30 L

Electric

16000 kg

202 m

Download ACE TC 7054 Brochure

Download ACE TC 7054 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE TC 7054

Engine Power

74 HP

Operating Weight

60000 kg

Lifting Capacity

16000 kg

Lifting Height

202 m

Working Radius

70 m

Drive Type

2WD

About ACE TC 7054 Overview

ACE is a very popular name in the heavy construction equipment segment. ACE TC 7054 is designed with segment best specification, which helps in providing better work efficiency. ACE TC 7054 is a highl...

ACE TC 7054 Specs & Features

Engine

Engine MakeElectric Motor Driven

Engine ModelElectric Motor

Engine Type3-Phase AC Electric Motors

AspirationN/A

Gross Power55 HP

Net Power50 HP

Engine Power74 HP

Engine Displacement2000 cc

No. of Cylinders4

Fuel TypeElectric

Rated RPM1500

Emission StandardCPCB II

Max Torque400 Nm

Power Train

Transmission TypeDirect Drive (Generator Coupled)

Drive Type2WD

Clutch TypeDry Plate (Generator Engine)

No. of Forward Speeds1

No. of Reverse Speeds1

Gear Box TypePlanetary Reduction

Differential TypeHeavy Duty Industrial

Boom & Lifting

Crane TypeFlat-Top Tower Crane

Boom TypeLattice Jib

Boom Length70 m

No. of Boom Sections10

Boom Extension TypePin Connected Modular

Max Lifting Height202 m

Max Working Radius70 m

Rated Capacity

Max Lifting Capacity16000 t

Rated Load16000 t

Capacity at Min Radius16 t @ 2.5

Capacity at Max Radius3.5 t @ 70

Load Moment1120 tm

Fly Jib

Fly Jib Length10 m

Fly Jib AvailableYes

Max Height with Fly Jib212 m

Speed

Max Travel Speed25 km/h

Creep Speed1 km/h

Dimensions

Overall Length15000 mm

Overall Width2000 mm

Overall Height2000 mm

Wheelbase4000 mm

Min Ground Clearance350 mm

Wheel Track Front2000 mm

Wheel Track Rear2000 mm

ACE TC 7054 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹26,693

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹12,00,000
Interest Amount (12 %)	₹4,01,600
Total Amount Payable	₹16,01,600

ACE TC 7054 Pros and cons

Pros

Very high load capacity (~16 t) and long reach (~70 m radius), suitable for large construction projects.

Capable of lifting to ~202.5 m, enabling use on tall building projects.

ACE is a recognized brand in tower crane equipment in India with service network & spares.

Cons

No published retail price; must request direct dealer quote — can delay planning.

Key specs like engine displacement and operating weight are not widely published since it’s a fixed tower crane, not mobile equipment.

Not mobile — must be erected on site; setup time & crane erection cost adds to project cost. (General tower crane limitation)

Download ACE TC 7054 Brochure

Download ACE TC 7054 brochure online. Check out the ACE TC 7054 PDF brochure at Only Heavy with all features and specifications.

ACE TC 7054 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
