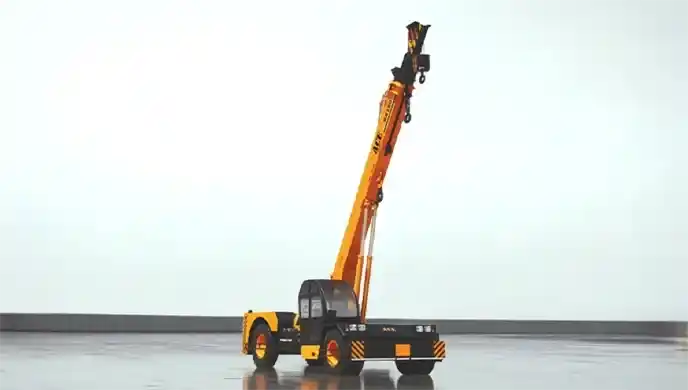

ACE SX 150

Ex-Showroom Price

₹ 19 L - 20 L

Diesel

14000 kg

15.4 m

Download ACE SX 150 Brochure

Download ACE SX 150 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE SX 150

Engine Power

49.5 HP

Operating Weight

14200 kg

Lifting Capacity

14000 kg

Lifting Height

15.4 m

Working Radius

6.5 m

Drive Type

2WD

About ACE SX 150 Overview

ACE SX 150 is a highly popular crane in India. ACE SX 150 is quite justifiable, given the features it offers. The ACE SX 150 comes with the ideal boom length. In addition,The ACE SX 150 boasts optimal...

ACE SX 150 Specs & Features

Engine

Engine MakeMahindra 4485 IAE (BS-III CEV)

Engine ModelMahindra 4485 IAE / KOEL 4R810 NA

Engine Type4-stroke, water-cooled diesel

AspirationNaturally Aspirated

Gross Power36 HP

Net Power35 HP

Engine Power49.5 HP

Engine Displacement3000 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS III

Max Torque185 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle plate, dry friction

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeSliding mesh with high/low range

Differential TypeHeavy-duty hypoid differential

Boom & Lifting

Crane TypePick & Carry Mobile Crane

Boom TypeTelescopic box-type boom

Boom Length15.4 m

No. of Boom Sections3

Boom Extension TypeHydraulic synchronized

Max Lifting Height15.4 m

Max Working Radius6.5 m

Rated Capacity

Max Lifting Capacity14 t

Rated Load14 t

Capacity at Min Radius14@2

Capacity at Max Radius[email protected]

Load Moment91 tm

Fly Jib

Fly Jib Length3 m

Fly Jib Available-

Max Height with Fly Jib18.4 m

Speed

Max Travel Speed29 km/h

Creep Speed2.5 km/h

Dimensions

Overall Length6500 mm

Overall Width2400 mm

Overall Height3100 mm

Wheelbase2800 mm

Min Ground Clearance350 mm

Wheel Track Front1859 mm

Wheel Track Rear1860 mm

ACE SX 150 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹40,040

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹18,00,000
Interest Amount (12 %)	₹6,02,400
Total Amount Payable	₹24,02,400

ACE SX 150 Pros and cons

Pros

Cost-effective: Lower price point (~₹19–21 L) compared to many cranes in the same range

Adequate lift for many jobs: 14 T capacity suits medium lifting and material handling.

Operator comfort: Power steering and ROPS cab features improve handling and safety

Cons

Lower engine power: ~47 – 49.5 HP is modest for heavy or continuous lifting compared to some competitors

Boom height limited: ~15.4 m less than some larger cranes.

Not ideal for very heavy industrial lifts: Best for medium-duty site/lifting tasks.

Download ACE SX 150 Brochure

Download ACE SX 150 brochure online. Check out the ACE SX 150 PDF brochure at Only Heavy with all features and specifications.

ACE SX 150 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
