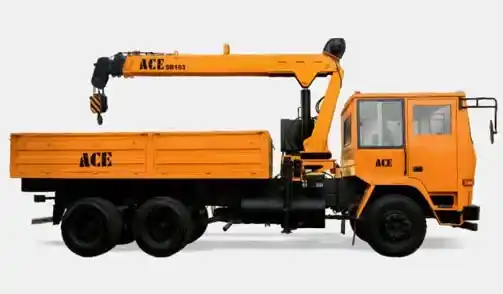

ACE SB 123

Ex-Showroom Price

₹ 9 L - 11 L

Diesel

12000 kg

11 m

Download ACE SB 123 Brochure

Download ACE SB 123 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE SB 123

Engine Power

75 HP

Operating Weight

12000 kg

Lifting Capacity

12000 kg

Lifting Height

11 m

Working Radius

8.2 m

Drive Type

2WD

About ACE SB 123 Overview

The ACE SB 123 comes with an engine which generates adequate amount of Power and Torque. In addition, this engine gives a new dimension to work output to this ACE SB 123.The ACE SB 123 comes with an o...

ACE SB 123 Specs & Features

Engine

Engine MakeTata Motors

Engine Model497 TCIC

Engine Type4-stroke, water-cooled, direct injection diesel

AspirationTurbocharged with Intercooler

Gross Power92 HP

Net Power88 HP

Engine Power75 HP

Engine Displacement4300 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS6

Max Torque390 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle dry plate, hydraulic assisted

No. of Forward Speeds6

No. of Reverse Speeds1

Gear Box TypeSynchromesh

Differential TypeSingle reduction hypoid

Boom & Lifting

Crane TypeTruck Mounted Straight Boom Crane

Boom TypeTelescopic

Boom Length3.0 – 8.5 m m

No. of Boom Sections3

Boom Extension TypeHydraulic

Max Lifting Height11 m

Max Working Radius8.2 m

Rated Capacity

Max Lifting Capacity12 t

Rated Load12 t

Capacity at Min Radius12 t @ 3 m

Capacity at Max Radius1.5 t @ 8.2 m

Load Moment12 tm

Fly Jib

Fly Jib Length2.5 m

Fly Jib AvailableYes

Max Height with Fly Jib13.5 m

Speed

Max Travel Speed80 km/h

Creep Speed2 km/h

Dimensions

Overall Length8800 mm

Overall Width2350 mm

Overall Height3100 mm

Wheelbase4200 mm

Min Ground Clearance250 mm

Wheel Track Front1850 mm

Wheel Track Rear1750 mm

ACE SB 123 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹17,796

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹8,00,000
Interest Amount (12 %)	₹2,67,733
Total Amount Payable	₹10,67,733

ACE SB 123 Pros and cons

Pros

Good lifting capacity for medium jobs: 12 Tm class suitable for construction & industrial loading.

360° continuous slew: Offers flexible load positioning without repositioning the truck.

Manageable working radius: ~8.2 m reach adequate for many site tasks.

Cons

Engine specs not standardized: ACE SB-123 itself doesn’t come with a fixed engine—displacement & power depend on the truck chassis selected.

Incomplete public technical details: Exact published figures for operating weight and full engine specs are limited.

Drive type varies by chassis: Whether 2WD or 4WD depends on the base truck you choose.

Download ACE SB 123 Brochure

Download ACE SB 123 brochure online. Check out the ACE SB 123 PDF brochure at Only Heavy with all features and specifications.

ACE SB 123 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
