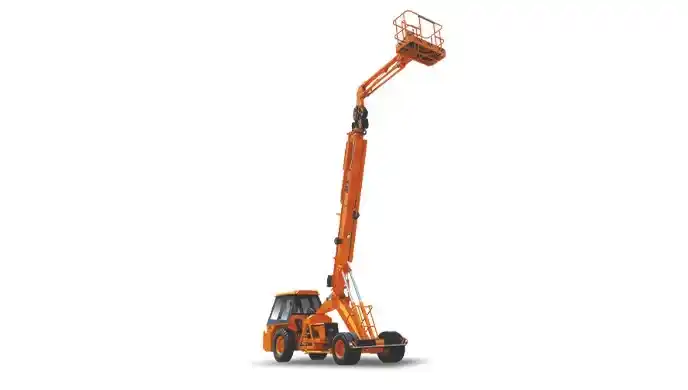

ACE HXP 150

Ex-Showroom Price

₹ 26 L - 28 L

Diesel

15000 kg

21 m

Download ACE HXP 150 Brochure

Download ACE HXP 150 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE HXP 150

Engine Power

48 HP

Operating Weight

15000 kg

Lifting Capacity

15000 kg

Lifting Height

21 m

Working Radius

18 m

Drive Type

2WD

About ACE HXP 150 Overview

ACE HXP 150 is a highly popular Crane in India. In addition the max travel speed of the ACE HXP 150 crane is 28 Kmph.ACE HXP 150 comes with an engine which generates a power of 48 HP. In addition, thi...

ACE HXP 150 Specs & Features

Engine

Engine MakeSimpson’s S433

Engine ModelSimpson’s S433

Engine Type4‑cylinder, water‑cooled diesel

AspirationNaturally aspirated

Gross Power36 HP

Net Power34 HP

Engine Power48 HP

Engine Displacement4000 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardCEV BS‑III

Max Torque200 Nm

Power Train

Transmission TypeHeavy‑duty sliding mesh

Drive Type2WD

Clutch TypeHeavy duty, single, dry friction

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeSliding Mesh

Differential TypeStandard – open differential

Boom & Lifting

Crane TypePick‑and‑Carry

Boom Type4‑part telescopic boom

Boom Length21 m

No. of Boom Sections4

Boom Extension TypeHydraulic

Max Lifting Height21 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity15 t

Rated Load15 t

Capacity at Min Radius15t@4

Capacity at Max Radius3t@2

Load Moment80 tm

Fly Jib

Fly Jib LengthNA m

Fly Jib AvailableNo

Max Height with Fly JibNA m

Speed

Max Travel Speed28 km/h

Creep Speed2 km/h

Dimensions

Overall Length5500 mm

Overall Width2400 mm

Overall Height2700 mm

Wheelbase4800 mm

Min Ground Clearance250 mm

Wheel Track Front1800 mm

Wheel Track Rear1800 mm

ACE HXP 150 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹55,611

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹25,00,000
Interest Amount (12 %)	₹8,36,667
Total Amount Payable	₹33,36,667

ACE HXP 150 Pros and cons

Pros

Integrated aerial platform: Useful for elevated work and access tasks beyond simple lifting.

Lighter and more maneuverable: ~13.35 t operating weight easier to move on site than heavier cranes.

Cons

Smaller displacement: Not officially listed, but inferred to be lower than higher‑output crane engines.

Older emission standard: CEV BS‑III is not as clean as newer BS‑IV/V compliant engines.

Download ACE HXP 150 Brochure

Download ACE HXP 150 brochure online. Check out the ACE HXP 150 PDF brochure at Only Heavy with all features and specifications.

ACE HXP 150 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
