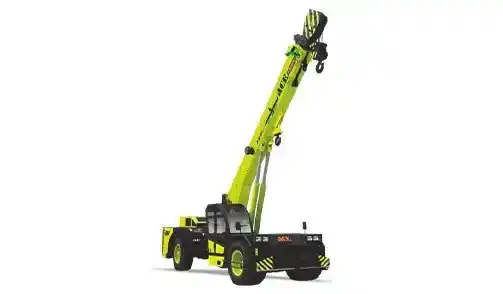

ACE FX 300

Ex-Showroom Price

₹ 26 L - 50 L

Diesel

30000 kg

11 m

Download ACE FX 300 Brochure

Download ACE FX 300 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE FX 300

Engine Power

133 HP

Operating Weight

30000 kg

Lifting Capacity

30000 kg

Lifting Height

11 m

Working Radius

8.2 m

Drive Type

2WD

About ACE FX 300 Overview

ACE FX 300 comes with an engine which generates a power of 133 HP. In addition, this engine gives a new dimension to work output to this ACE FX 300. The ACE FX 300 comes with an operating weight of 30...

ACE FX 300 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelH4C413022 (CEV BS‑IV)

Engine Type4‑cylinder water‑cooled diesel

AspirationNaturally aspirated

Gross Power95 HP

Net Power90 HP

Engine Power133 HP

Engine Displacement4700 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2300

Emission StandardBS‑IV (CEV BS‑IV)

Max Torque450 Nm

Power Train

Transmission TypeHeavy‑duty Synchromesh

Drive Type2WD

Clutch TypeHeavy‑duty hydraulic clutch

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeSynchromesh with high/low selector (creep)

Differential TypeConventional locked differential

Boom & Lifting

Crane TypePick & Carry Hydraulic Crane

Boom TypeThree‑part slotted telescopic boom

Boom Length8.5 m

No. of Boom Sections3

Boom Extension TypeHydraulic synchronized extension

Max Lifting Height11 m

Max Working Radius8.2 m

Rated Capacity

Max Lifting Capacity30 t

Rated Load30 t

Capacity at Min Radius30T @ 2–3 m

Capacity at Max Radius3–4T @ ~8–9 m

Load Moment80 tm

Fly Jib

Fly Jib Length6 m

Fly Jib AvailableYes

Max Height with Fly Jib17 m

Speed

Max Travel Speed35 km/h

Creep Speed6 km/h

Dimensions

Overall Length7000 mm

Overall Width2600 mm

Overall Height3200 mm

Wheelbase5100 mm

Min Ground Clearance250 mm

Wheel Track Front1900 mm

Wheel Track Rear1770 mm

ACE FX 300 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹55,611

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹25,00,000
Interest Amount (12 %)	₹8,36,667
Total Amount Payable	₹33,36,667

ACE FX 300 Pros and cons

Pros

High lifting capacity: 30 tonnes native rating for heavy industrial jobs (boilers, girders, site materials).

Heavy‑duty transmission with multiple gears and creep speed selector for controlled movement.

Full power orbitrol steering with good articulation (~40°) for maneuvering the load

Cons

2WD only — less traction vs 4WD cranes for rough/muddy sites.

Operating weight heavy (~20.3 t), which may complicate transport or use on softer surfaces.

Turning radius ~8.2 m, not ideal in very tight spaces.

Download ACE FX 300 Brochure

Download ACE FX 300 brochure online. Check out the ACE FX 300 PDF brochure at Only Heavy with all features and specifications.

ACE FX 300 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
