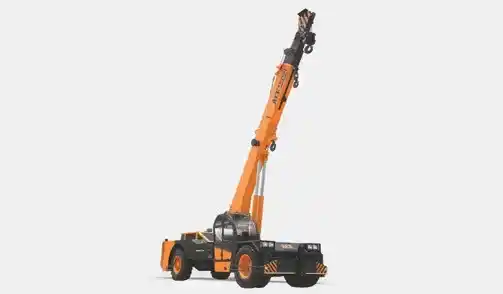

ACE FX 250

Ex-Showroom Price

₹ 42 L - 48 L

Diesel

25000 kg

18.3 m

Download ACE FX 250 Brochure

Download ACE FX 250 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE FX 250

Engine Power

133 HP

Operating Weight

25000 kg

Lifting Capacity

25000 kg

Lifting Height

18.3 m

Working Radius

8.2 m

Drive Type

2WD

About ACE FX 250 Overview

ACE FX 250 comes with an engine which generates a power of 133 HP. In addition, this engine gives a new dimension to work output to this ACE FX 250.The ACE FX 250 comes with an operating weight of 25 ...

ACE FX 250 Specs & Features

Engine

Engine MakeAshok Leyland

Engine Model6‑cylinder water cooled diesel

Engine TypeInline 6‑cylinder, water‑cooled diesel

AspirationTurbocharged

Gross Power99 HP

Net Power95 HP

Engine Power133 HP

Engine Displacement5000 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2300

Emission StandardBS‑IV / CEV Stage III

Max Torque500 Nm

Power Train

Transmission TypeHeavy‑duty synchromesh gearbox with high/low

Drive Type2WD

Clutch TypeSingle dry friction clutch

No. of Forward Speeds8

No. of Reverse Speeds2

Gear Box TypeSynchromesh with hi/low range

Differential TypeConventional differential

Boom & Lifting

Crane TypePick & Carry Hydraulic Crane

Boom Type3‑part slotted telescopic boom

Boom Length12 m

No. of Boom Sections3

Boom Extension TypeHydraulic synchronized extension

Max Lifting Height18.3 m

Max Working Radius8.2 m

Rated Capacity

Max Lifting Capacity25 t

Rated Load25 t

Capacity at Min Radius25 T @ ~2–3 m

Capacity at Max Radius4 – 5 T @ ~8–9 m

Load Moment100 tm

Fly Jib

Fly Jib Length6 m

Fly Jib AvailableYes

Max Height with Fly Jib22 m

Speed

Max Travel Speed35 km/h

Creep Speed6 km/h

Dimensions

Overall Length7000 mm

Overall Width2600 mm

Overall Height3200 mm

Wheelbase5100 mm

Min Ground Clearance350 mm

Wheel Track Front1900 mm

Wheel Track Rear1770 mm

ACE FX 250 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹91,202

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹41,00,000
Interest Amount (12 %)	₹13,72,134
Total Amount Payable	₹54,72,134

ACE FX 250 Pros and cons

Pros

25 T rating makes it suitable for larger construction, infrastructure, and industrial lifting tasks relative to smaller pick‑and‑carry cranes.

133 HP Ashok Leyland power unit delivers robust driving and lifting performance for heavier loads.

18.3 m boom height provides a good balance of reach and lift for general site tasks.

Cons

Lack of 4WD limits traction on soft ground, mud, or uneven job sites compared with all‑terrain cranes.

20.2 t weight increases transport cost and may reduce agility on compact sites.

8.2 m turning radius is wider than many smaller cranes — less suited to tight maneuvering.

Download ACE FX 250 Brochure

Download ACE FX 250 brochure online. Check out the ACE FX 250 PDF brochure at Only Heavy with all features and specifications.

ACE FX 250 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
