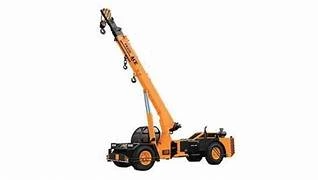

ACE FX 230

Ex-Showroom Price

₹ 18 L - 22 L

Diesel

23 kg

19 m

Download ACE FX 230 Brochure

Download ACE FX 230 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE FX 230

Engine Power

74 HP

Operating Weight

7200 kg

Lifting Capacity

23 kg

Lifting Height

19 m

Working Radius

8 m

Drive Type

4WD

About ACE FX 230 Overview

ACE is a very popular name in the heavy construction equipment segment. ACE FX 230 is designed with segment best specification, which helps in providing better work efficiency. The Crane model from AC...

ACE FX 230 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelAL 4DTIC

Engine TypeDiesel

AspirationTurbocharged

Gross Power55 HP

Net Power52 HP

Engine Power75 HP

Engine Displacement3839 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS III

Max Torque300 Nm

Power Train

Transmission TypeMechanical Synchromesh

Drive Type4WD

Clutch TypeSingle Plate Dry Type

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeManual

Differential TypeHeavy Duty Conventional

Boom & Lifting

Crane TypePick and Carry Crane

Boom TypeTelescopic

Boom Length13 m

No. of Boom Sections2

Boom Extension TypeHydraulic

Max Lifting Height15 m

Max Working Radius7 m

Rated Capacity

Max Lifting Capacity23 t

Rated Load12 t

Capacity at Min Radius12 T @ 1.5 m

Capacity at Max Radius3.0 T @ 7.5 m

Load Moment20 tm

Fly Jib

Fly Jib Length1.5 m

Fly Jib AvailableYes

Max Height with Fly Jib17 m

Speed

Max Travel Speed32 km/h

Creep Speed2 km/h

Dimensions

Overall Length8800 mm

Overall Width2350 mm

Overall Height3200 mm

Wheelbase3200 mm

Min Ground Clearance320 mm

Wheel Track Front1950 mm

Wheel Track Rear1950 mm

ACE FX 230 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹37,816

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹17,00,000
Interest Amount (12 %)	₹5,68,934
Total Amount Payable	₹22,68,934

ACE FX 230 Pros and cons

Pros

Good working radius (~8 m)

Powerful engine (~74 HP

Good working radius

Cons

2WD only

Not ideal for very heavy infrastructure work

Basic operator comfort

Download ACE FX 230 Brochure

Download ACE FX 230 brochure online. Check out the ACE FX 230 PDF brochure at Only Heavy with all features and specifications.

ACE FX 230 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
