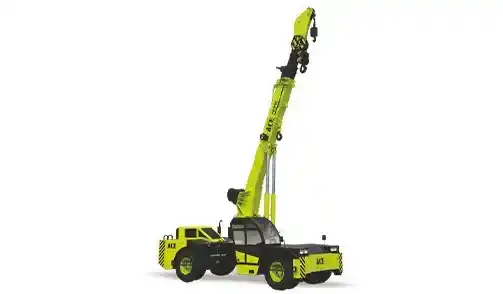

ACE FP 210

Ex-Showroom Price

₹ 28 L - 32 L

Diesel

20000 kg

21 m

Download ACE FP 210 Brochure

Download ACE FP 210 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE FP 210

Engine Power

101 HP

Operating Weight

20000 kg

Lifting Capacity

20000 kg

Lifting Height

21 m

Working Radius

8 m

Drive Type

4WD

About ACE FP 210 Overview

ACE FP 210 comes with an engine which generates a power of 101 HP. In addition, this engine gives a new dimension to work output to this ACE FP 210.The ACE FP 210 comes with an operating weight of 20 ...

ACE FP 210 Specs & Features

Engine

Engine MakeVolvo Eicher (E483 CRDI) turbo diesel

Engine ModelE 483 CRDI

Engine Type4‑cylinder, water‑cooled, turbocharged diesel with ECU

AspirationTurbocharged

Gross Power74 HP

Net Power70 HP

Engine Power101 HP

Engine Displacement4200 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardCEV Stage IV

Max Torque480 Nm

Power Train

Transmission TypeHeavy‑duty synchromesh with hi/low selector

Drive Type4WD

Clutch TypeHeavy‑duty single dry friction hydraulic clutch

No. of Forward Speeds12

No. of Reverse Speeds2

Gear Box TypeSynchromesh sliding mesh with hi/low range

Differential TypeConventional geared differential

Boom & Lifting

Crane TypePick & Carry + Piling Crane (Multi‑Activity)

Boom Type4‑section telescopic hydraulic boom

Boom Length16 m

No. of Boom Sections4

Boom Extension TypeHydraulic synchronized extension

Max Lifting Height21 m

Max Working Radius8 m

Rated Capacity

Max Lifting Capacity20 t

Rated Load20 t

Capacity at Min Radius20T @ ~2–3 m

Capacity at Max Radius3–4T @ 9 m

Load Moment80 tm

Fly Jib

Fly Jib Length5 m

Fly Jib AvailableYes

Max Height with Fly Jib25 m

Speed

Max Travel Speed35 km/h

Creep Speed6 km/h

Dimensions

Overall Length7000 mm

Overall Width2500 mm

Overall Height3200 mm

Wheelbase4300 mm

Min Ground Clearance400 mm

Wheel Track Front1840 mm

Wheel Track Rear1840 mm

ACE FP 210 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹60,060

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹27,00,000
Interest Amount (12 %)	₹9,03,601
Total Amount Payable	₹36,03,601

ACE FP 210 Pros and cons

Pros

Can handle heavy site loads and medium industrial lifting tasks well.

Good usable height for piling and placement operations on mid‑rise jobs.

Four‑wheel drive improves traction on uneven or soft ground.

Cons

Official ₹29–32 Lakhs ex‑showroom can shift significantly after on‑road costs and taxes.

Some key parameters (e.g., displacement cc) require assumption/estimate.

Operating weight makes transport logistics more complex than lighter pick & carry cranes.

Download ACE FP 210 Brochure

Download ACE FP 210 brochure online. Check out the ACE FP 210 PDF brochure at Only Heavy with all features and specifications.

ACE FP 210 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
