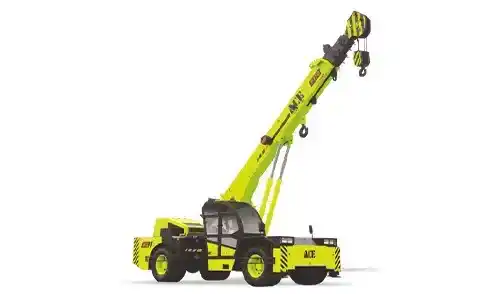

ACE F170

Ex-Showroom Price

₹ 35 L - 38 L

Diesel

17000 kg

21 m

Download ACE F170 Brochure

Download ACE F170 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE F170

Engine Power

101 HP

Operating Weight

17000 kg

Lifting Capacity

17000 kg

Lifting Height

21 m

Working Radius

18 m

Drive Type

4WD

About ACE F170 Overview

ACE F170 is a highly popular Crane in India. In addition the max travel speed of the ACE F170 crane is 38 Kmph.ACE F170 comes with an engine which generates a power of 101 HP. In addition, this engine...

ACE F170 Specs & Features

Engine

Engine MakeVolvo Eicher

Engine ModelE483 CRDI

Engine Type4‑Stroke, Water‑Cooled Diesel

AspirationTurbocharged

Gross Power55 HP

Net Power55 HP

Engine Power101 HP

Engine Displacement4760 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardCEV Stage IV

Max Torque420 Nm

Power Train

Transmission TypeSynchromesh Manual Heavy Duty

Drive Type4WD

Clutch TypeSingle Plate, Dry Type

No. of Forward Speeds8

No. of Reverse Speeds2

Gear Box TypeHeavy Duty Synchromesh

Differential TypeLimited Slip Differential

Boom & Lifting

Crane TypePick & Carry Crane

Boom Type3‑Section Telescopic Boom

Boom Length8 – 21.6 m m

No. of Boom Sections3

Boom Extension TypeHydraulic Telescopic

Max Lifting Height21 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity17 t

Rated Load17 t

Capacity at Min Radius17 tons @ 2.5 m

Capacity at Max Radius3 tons @ 17.5 m

Load Moment50 tm

Fly Jib

Fly Jib Length5 m

Fly Jib AvailableYes

Max Height with Fly Jib24 m

Speed

Max Travel Speed38 km/h

Creep Speed1.5 km/h

Dimensions

Overall Length9400 mm

Overall Width2400 mm

Overall Height3150 mm

Wheelbase3500 mm

Min Ground Clearance350 mm

Wheel Track Front1950 mm

Wheel Track Rear1950 mm

ACE F170 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹75,631

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹34,00,000
Interest Amount (12 %)	₹11,37,867
Total Amount Payable	₹45,37,867

ACE F170 Pros and cons

Pros

At roughly ₹35–38 Lakh, the F170 offers solid performance within the 17‑ton crane category.

21.6 m telescopic boom provides broad working radius for medium‑height lifting tasks.

CEV Stage IV Volvo E483 CRDI engine with synchromesh gearbox offers reliable performance and fuel efficiency.

Cons

At 17 tonnes, it’s lighter than larger pick‑and‑carry cranes (e.g., 20–25 t).

Certain fluid capacities and precise torque specs aren’t published online — dealer confirmation recommended.

Standard 74 HP engine may feel underpowered for ultra‑heavy cycle tasks; optional upgrade to 101 HP can improve performance.

Download ACE F170 Brochure

Download ACE F170 brochure online. Check out the ACE F170 PDF brochure at Only Heavy with all features and specifications.

ACE F170 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
