ACE F 210

Ex-Showroom Price

₹ 34 L - 38 L

Diesel

20000 kg

20 m

Download ACE F 210 Brochure

Download ACE F 210 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE F 210

Engine Power

101 HP

Operating Weight

20000 kg

Lifting Capacity

20000 kg

Lifting Height

20 m

Working Radius

18 m

Drive Type

4WD

About ACE F 210 Overview

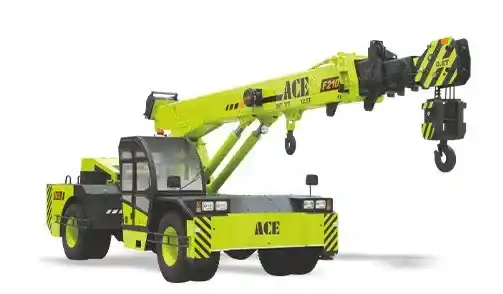

The ACE F 210 is a compact yet capable mobile crane designed for efficient lifting operations in construction, infrastructure maintenance, industrial facilities, logistics, and utility services. Power...

ACE F 210 Specs & Features

Engine

Engine MakeVolvo Eicher

Engine ModelE483 CRDI

Engine Type4-Stroke, Water-Cooled Diesel

AspirationTurbocharged

Gross Power74 HP

Net Power72 HP

Engine Power101 HP

Engine Displacement4760 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS-IV / CEV Stage IV

Max Torque550 Nm

Power Train

Transmission TypeSynchromesh Manual Heavy Duty

Drive Type4WD

Clutch TypeSingle Plate, Dry Type

No. of Forward Speeds10

No. of Reverse Speeds2

Gear Box TypeHeavy Duty Synchromesh

Differential TypeLimited Slip Differential

Boom & Lifting

Crane TypePick & Carry Crane

Boom Type3-Section Telescopic Boom

Boom Length8 – 20.1 m m

No. of Boom Sections3

Boom Extension TypeHydraulic Telescopic

Max Lifting Height20 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity20 t

Rated Load20 t

Capacity at Min Radius20 tons @ 2.5 m

Capacity at Max Radius3 tons @ 18 m

Load Moment60 tm

Fly Jib

Fly Jib Length5 m

Fly Jib AvailableYes

Max Height with Fly Jib23 m

Speed

Max Travel Speed40 km/h

Creep Speed1.5 km/h

Dimensions

Overall Length9850 mm

Overall Width2450 mm

Overall Height3200 mm

Wheelbase3500 mm

Min Ground Clearance350 mm

Wheel Track Front1960 mm

Wheel Track Rear1950 mm

ACE F 210 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹73,407

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹33,00,000
Interest Amount (12 %)	₹11,04,401
Total Amount Payable	₹44,04,401

ACE F 210 Pros and cons

Pros

The F210 offers a full 20 tonne lifting capacity, making it ideal for heavy construction, industrial material handling, and infrastructure applications.
Powered by a 101 HP Volvo Eicher E483 CRDI diesel engine, it delivers reliable performance across load cycles.
With a maximum boom height of ~20.1 m, it can handle a wide range of lifting and placement tasks without outriggers.

Cons

At around 19.8 t, transport and movement on soft or constrained sites may be more challenging.
Priced approximately ₹35 L – ₹43 L ex‑showroom, it may be cost‑higher compared to some smaller pick & carry models.
Specific engine oil, hydraulic tank, and coolant capacities are often not detailed on open spec sheets and may require dealer verification.

Download ACE F 210 Brochure

Download ACE F 210 brochure online. Check out the ACE F 210 PDF brochure at Only Heavy with all features and specifications.

ACE F 210 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
