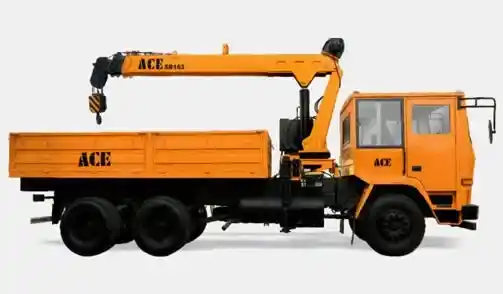

ACE AB 813

Ex-Showroom Price

₹ 7.1 L - 7.3 L

Diesel

80000 kg

12.2 m

Download ACE AB 813 Brochure

Download ACE AB 813 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE AB 813

Engine Power

230 HP

Operating Weight

65000 kg

Lifting Capacity

80000 kg

Lifting Height

12.2 m

Working Radius

9.6 m

Drive Type

2WD

About ACE AB 813 Overview

The ACE AB 813 comes with an engine which generates adequate amount of Power and Torque. In addition, this engine gives a new dimension to work output to this ACE AB 813.The ACE AB 813 comes with an o...

ACE AB 813 Specs & Features

Engine

Engine MakeAshok Leyland / Tata

Engine Model6-cylinder inline turbo-diesel

Engine TypeDiesel, water-cooled, 4-stroke

AspirationTurbocharged

Gross Power170 HP

Net Power160 HP

Engine Power230 HP

Engine Displacement5900 cc

No. of Cylinders6

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS IV / BS VI

Max Torque900 Nm

Power Train

Transmission TypeManual / Synchromesh

Drive Type4WD

Clutch TypeSingle dry plate

No. of Forward Speeds8

No. of Reverse Speeds2

Gear Box TypeManual / Truck standard

Differential TypeConventional

Boom & Lifting

Crane TypeTruck-mounted hydraulic loader crane

Boom TypeKnuckle / Articulated boom

Boom Length8 m

No. of Boom Sections3

Boom Extension TypeTelescopic hydraulic

Max Lifting Height12.2 m

Max Working Radius9.6 m

Rated Capacity

Max Lifting Capacity80000 t

Rated Load3000 t

Capacity at Min Radius2t@3

Capacity at Max Radius2t@3

Load Moment8 tm

Fly Jib

Fly Jib Length3 m

Fly Jib AvailableYes

Max Height with Fly Jib15 m

Speed

Max Travel Speed80 km/h

Creep Speed5 km/h

Dimensions

Overall Length9000 mm

Overall Width2500 mm

Overall Height3500 mm

Wheelbase4500 mm

Min Ground Clearance250 mm

Wheel Track Front2000 mm

Wheel Track Rear1800 mm

ACE AB 813 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹13,569

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹6,10,000
Interest Amount (12 %)	₹2,04,147
Total Amount Payable	₹8,14,147

ACE AB 813 Pros and cons

Pros

High Lifting Capability: Designed for heavy lifting and material‑handling tasks on construction and industrial sites.

Good Reach & Height: ~9.6 m working radius and ~12.2 m lift height delivers flexibility for many jobs.

360° Slew: Continuous rotation enables full maneuverability around the vehicle.

Cons

Price Variability: ₹7.1 L to ₹7.3 L+ is an estimate and can vary significantly based on chassis choice, dealer package, taxes, and accessories.

Limited Published Engine Details: Engine displacement (cc) and operating weight specs are not widely published online, making direct comparisons hard.

Crane‑Specific Use: Not designed for digging or earthmoving — limited to lifting and loading tasks.

Download ACE AB 813 Brochure

Download ACE AB 813 brochure online. Check out the ACE AB 813 PDF brochure at Only Heavy with all features and specifications.

ACE AB 813 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
