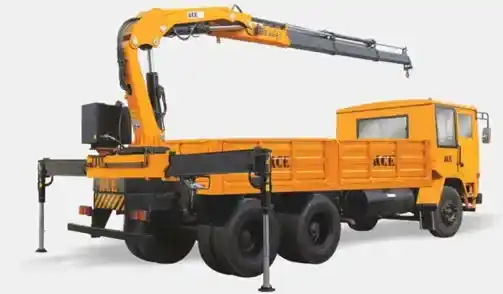

ACE AB 63

Ex-Showroom Price

₹ 51 L - 55 L

Diesel

6000 kg

12 m

Download ACE AB 63 Brochure

Download ACE AB 63 brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE AB 63

Engine Power

74 HP

Operating Weight

6000 kg

Lifting Capacity

6000 kg

Lifting Height

12 m

Working Radius

9 m

Drive Type

2WD

About ACE AB 63 Overview

The ACE AB 63 comes with an engine which generates adequate amount of Power and Torque. In addition, this engine gives a new dimension to work output to this ACE AB 63.The ACE AB 63 comes with an oper...

ACE AB 63 Specs & Features

Engine

Engine MakeAshok Leyland

Engine ModelH-Series 4-Cylinder Diesel

Engine Type4-Stroke, Water-Cooled, Direct Injection

AspirationTurbocharged

Gross Power55 HP

Net Power52 HP

Engine Power74 HP

Engine Displacement4000 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2400

Emission StandardBS 6

Max Torque300 Nm

Power Train

Transmission TypeManual

Drive Type2WD

Clutch TypeSingle Plate Dry Clutch

No. of Forward Speeds5

No. of Reverse Speeds1

Gear Box TypeSynchromesh

Differential TypeSingle Reduction Hypoid

Boom & Lifting

Crane TypeTruck Mounted Hydraulic Lorry Loader

Boom TypeTelescopic

Boom Length9 m

No. of Boom Sections3

Boom Extension TypeHydraulic

Max Lifting Height12 m

Max Working Radius9 m

Rated Capacity

Max Lifting Capacity6 t

Rated Load6 t

Capacity at Min Radius6 t @ 2.0 m

Capacity at Max Radius1.2 t @ 9 m

Load Moment12 tm

Fly Jib

Fly Jib Length3 m

Fly Jib AvailableYes

Max Height with Fly Jib15 m

Speed

Max Travel Speed60 km/h

Creep Speed2.5 km/h

Dimensions

Overall Length7600 mm

Overall Width2300 mm

Overall Height3200 mm

Wheelbase3900 mm

Min Ground Clearance240 mm

Wheel Track Front1800 mm

Wheel Track Rear1700 mm

ACE AB 63 EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹1,11,222

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹50,00,000
Interest Amount (12 %)	₹16,73,334
Total Amount Payable	₹66,73,334

ACE AB 63 Pros and cons

Pros

Rated up to ~6 000 kg – good for general construction and material handling.

Modern units may include emergency stop, overload protection, etc. (rental specs).

Fits on truck chassis, making it ideal for urban/medium-site logistics.

Cons

Official specs for engine displacement and exact HP aren’t easily available.

Unlike tractor-mounted loaders, crane performance depends on truck chassis type.

Exact on-road cost fluctuates by truck mount and region (~₹51 lakh – ₹55 lakh as rough market reference).

Download ACE AB 63 Brochure

Download ACE AB 63 brochure online. Check out the ACE AB 63 PDF brochure at Only Heavy with all features and specifications.

ACE AB 63 Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
