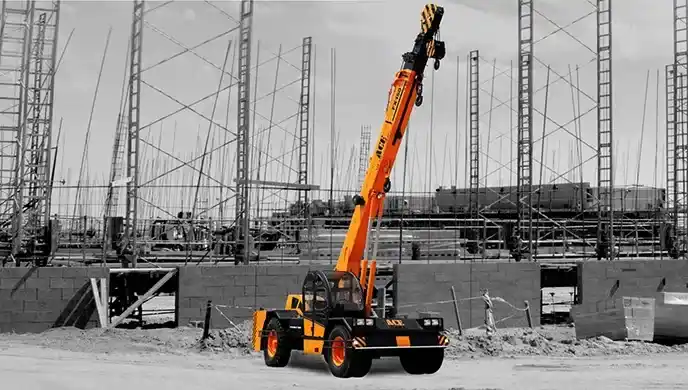

ACE 25XW

Ex-Showroom Price

₹ 24 L - 25 L

Diesel

25000 kg

23.1 m

Download ACE 25XW Brochure

Download ACE 25XW brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE 25XW

Engine Power

74 HP

Operating Weight

17420 kg

Lifting Capacity

25000 kg

Lifting Height

23.1 m

Working Radius

6.5 m

Drive Type

2WD

About ACE 25XW Overview

ACE 25XW is a highly popular crane in India. ACE 25XW is quite justifiable, given the features it offers. The ACE 25XW comes with the ideal boom length. In addition,the maximum lifting capacity of the...

ACE 25XW Specs & Features

Engine

Engine MakeSimpson SIV436‑F23 (CEV BS‑IV)

Engine ModelSIV436‑F23 (CEV BS‑IV)

Engine Type4‑cylinder, water‑cooled diesel

AspirationNaturally aspirated (no turbo listed)

Gross Power54 HP

Net Power54 HP

Engine Power74 HP

Engine Displacement4300 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardBS IV

Max Torque766 Nm

Power Train

Transmission TypeSliding mesh gearbox with high‑low range selector; 6F + 2R speeds

Drive Type2WD

Clutch TypeHeavy duty, single dry friction type

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeManual sliding mesh

Differential TypeStandard truck differential

Boom & Lifting

Crane TypePick‑and‑Carry Hydra Crane

Boom TypeTelescopic (three‑part hydraulically extended)

Boom Length23 m

No. of Boom Sections4

Boom Extension TypeHydraulic with manual power extend

Max Lifting Height23.1 m

Max Working Radius6.5 m

Rated Capacity

Max Lifting Capacity25 t

Rated Load25 t

Capacity at Min Radius100@3

Capacity at Max Radius[email protected]

Load Moment100 tm

Fly Jib

Fly Jib Length1.4 m

Fly Jib AvailableYes

Max Height with Fly Jib25 m

Speed

Max Travel Speed28 km/h

Creep Speed3 km/h

Dimensions

Overall Length18672 mm

Overall Width2900 mm

Overall Height3655 mm

Wheelbase5500 mm

Min Ground Clearance276 mm

Wheel Track Front2800 mm

Wheel Track Rear2887 mm

ACE 25XW EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹51,162

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹23,00,000
Interest Amount (12 %)	₹7,69,734
Total Amount Payable	₹30,69,734

ACE 25XW Pros and cons

Pros

High lifting capacity (25 t) ideal for heavy civil projects, bridges, industrial sites.

Good boom reach (23.1 m) for elevated placement tasks.

Strong safety features (ROPS cabin, air brakes).

Cons

Drive Type: 2WD only — limited traction compared to 4WD machines in rough/soft terrains.

Heavier operating weight (~17.4 t) can make transport logistics more demanding.

Detailed load chart not widely published online — needs dealer brochure.

Download ACE 25XW Brochure

Download ACE 25XW brochure online. Check out the ACE 25XW PDF brochure at Only Heavy with all features and specifications.

ACE 25XW Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
