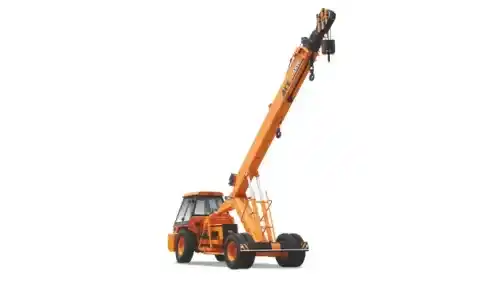

ACE 16XW

Ex-Showroom Price

₹ 21 L - 24 L

Diesel

16000 kg

20 m

Download ACE 16XW Brochure

Download ACE 16XW brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE 16XW

Engine Power

49.5 HP

Operating Weight

16000 kg

Lifting Capacity

16000 kg

Lifting Height

20 m

Working Radius

18 m

Drive Type

2WD

About ACE 16XW Overview

ACE 16XW comes with an engine which generates a power of 49.5 HP. In addition, this engine gives a new dimension to work output to this ACE 16XW.The ACE 16XW comes with an operating weight of 16 Ton. ...

ACE 16XW Specs & Features

Engine

Engine MakeACE crane engine

Engine ModelACE‑A50 / ACE‑A65 (CEV BS‑III)

Engine Type4‑cylinder, water‑cooled diesel

AspirationNaturally aspirated

Gross Power37 HP

Net Power36 HP

Engine Power49.5 HP

Engine Displacement8300 cc

No. of Cylinders4

Fuel TypeDiesel

Rated RPM2200

Emission StandardCEV BS‑III

Max Torque300 Nm

Power Train

Transmission TypeDiesel engine

Drive Type2WD

Clutch TypeSingle‑plate, dry friction type

No. of Forward Speeds6

No. of Reverse Speeds2

Gear Box TypeManual sliding mesh

Differential TypeStandard road diff

Boom & Lifting

Crane TypePick‑and‑Carry Hydraulic Crane

Boom TypeTelescopic three‑part hydraulic

Boom Length16 m

No. of Boom Sections3

Boom Extension TypeHydraulic

Max Lifting Height20 m

Max Working Radius18 m

Rated Capacity

Max Lifting Capacity16 t

Rated Load16 t

Capacity at Min Radius16 t @ ~3 m

Capacity at Max Radius2–3 t @ ~16–18 m

Load Moment100 tm

Fly Jib

Fly Jib Length2 m

Fly Jib AvailableYes

Max Height with Fly Jib20 m

Speed

Max Travel Speed28 km/h

Creep Speed2 km/h

Dimensions

Overall Length4900 mm

Overall Width2500 mm

Overall Height2600 mm

Wheelbase4900 mm

Min Ground Clearance280 mm

Wheel Track Front2800 mm

Wheel Track Rear2800 mm

ACE 16XW EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹44,489

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹20,00,000
Interest Amount (12 %)	₹6,69,334
Total Amount Payable	₹26,69,334

ACE 16XW Pros and cons

Pros

Good lifting capacity for class: 16 t capacity suitable for many construction and material handling jobs.

Relatively low price: More cost‑effective compared to larger cranes in the ACE lineup

Compact size: Smaller turning radius (~6.5 m) for confined site work

Cons

Lower engine power: ~49.5 HP gives modest performance compared with higher‑powered cranes.

Smaller displacement: ~8 000–8 300 cc engine is mid‑range; might struggle with heavy continuous work relative to stronger engines.

Creep speed & ergonomics: Basic hydraulics and manual steering may limit precision and operator comfort compared with newer models.

Download ACE 16XW Brochure

Download ACE 16XW brochure online. Check out the ACE 16XW PDF brochure at Only Heavy with all features and specifications.

ACE 16XW Uses

Construction Lifting

Material Handling

Infrastructure Projects

Heavy Lifting

Tower Construction
