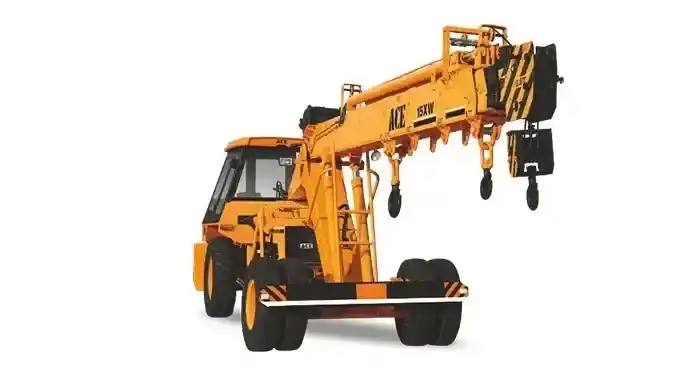

ACE 15XW

Ex-Showroom Price

₹ 20 L - 24 L

Diesel

Diesel

15000 kg

15000 kg

19 m

19 m

Download ACE 15XW Brochure

Download ACE 15XW brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ACE 15XW

Engine Power

Engine Power

48 HP

Operating Weight

Operating Weight

13350 kg

Lifting Capacity

Lifting Capacity

15000 kg

Lifting Height

Lifting Height

19 m

Working Radius

Working Radius

7.9 m

Drive Type

Drive Type

2WD

About ACE 15XW Overview

ACE 15XW is a highly popular Crane in India. The price range of ACE 15XW is between ₹ 22.50 Lakh to ₹ 23 Lakh. In addition the max travel speed of the ACE 15XW crane is 28 Kmph.

ACE 15XW Specs & Features

Engine

Engine MakeSimpson & Co.
Engine ModelSimpson S433 (Industrial)
Engine Type4-Stroke, Water-Cooled Diesel
AspirationNaturally Aspirated
Gross Power36 HP
Net Power34 HP
Engine Power48 HP
Engine Displacement8000 cc
No. of Cylinders4
Fuel TypeDiesel
Rated RPM2200
Emission StandardStage III
Max Torque190 Nm

Power Train

Transmission TypeManual
Drive Type2WD
Clutch TypeDry Plate
No. of Forward Speeds6
No. of Reverse Speeds2
Gear Box TypeSliding Mesh
Differential TypeHeavy Duty Bevel Gear

Boom & Lifting

Crane TypePick and Carry Hydraulic Mobile Crane
Boom Type3-Section Telescopic Boom
Boom Length18.5 m
No. of Boom Sections3
Boom Extension TypeHydraulic Telescopic
Max Lifting Height19 m
Max Working Radius7.9 m

Rated Capacity

Max Lifting Capacity15 t
Rated Load15 t
Capacity at Min Radius15 tons @ 2.5
Capacity at Max Radius2 tons @ 7.9
Load Moment30 tm

Fly Jib

Fly Jib Length3 m
Fly Jib AvailableYes
Max Height with Fly Jib22 m

Speed

Max Travel Speed30 km/h
Creep Speed1.5 km/h

Dimensions

Overall Length7850 mm
Overall Width2450 mm
Overall Height3100 mm
Wheelbase2800 mm
Min Ground Clearance350 mm
Wheel Track Front1900 mm
Wheel Track Rear1850 mm

ACE 15XW EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

42,264

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount19,00,000
Interest Amount (12 %)6,35,867
Total Amount Payable25,35,867

ACE 15XW Pros and cons

like

Pros

  • Strong lifting capability: 15 T is solid for many site operations.
  • Good lifting height: ~19 m useful for medium-height jobs.
  • Relatively lighter & maneuverable weight: Makes transportation easier than heavier cranes.
  • like

    Cons

  • Engine is comparatively low power (48 HP): Less powerful than some competitors.
  • No 4WD variant: Cannot select 4WD unless moving to larger models (e.g., F150/F230 series).
  • Basic transmission: Sliding-mesh gearbox is simpler and may require more effort to operate.
  • Download ACE 15XW Brochure

    Download ACE 15XW brochure online. Check out the ACE 15XW PDF brochure at Only Heavy with all features and specifications.

    ACE 15XW Uses

    uses

    Construction Lifting

    uses

    Material Handling

    uses

    Infrastructure Projects

    uses

    Heavy Lifting

    uses

    Tower Construction
