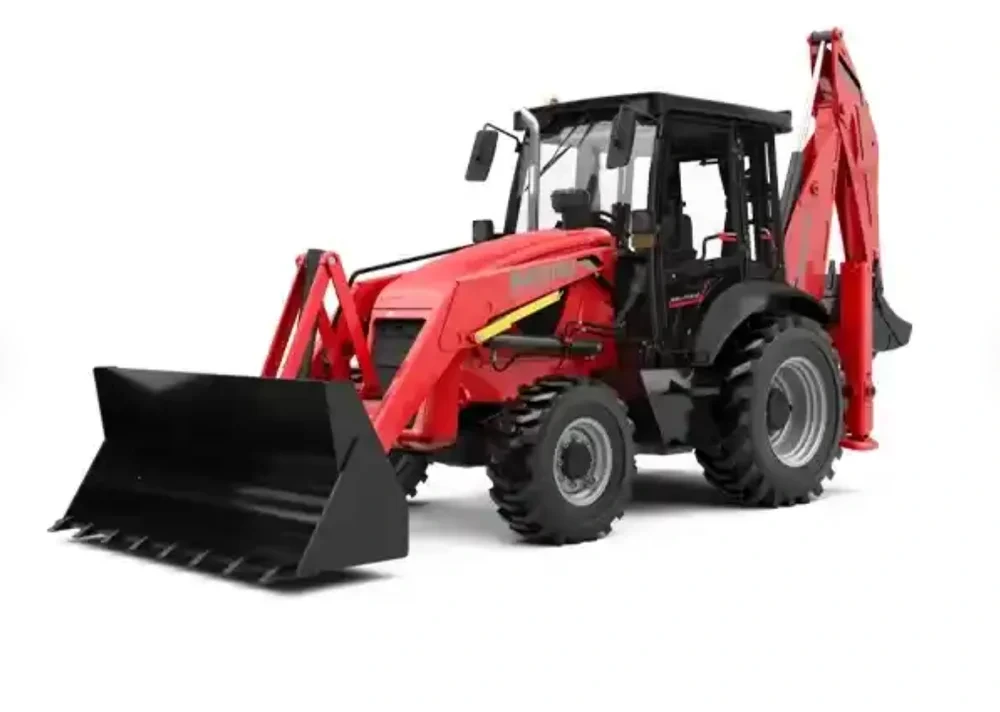

Manitou MBL 745 HT Plus

Ex-Showroom Price

₹ 38 L - 43 L

Diesel

0.35 Cu.m

5500 mm

Download Manitou MBL 745 HT Plus Brochure

Download Manitou MBL 745 HT Plus brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Manitou MBL 745 HT Plus

Max. reach at full height

1996 m

Max Operating Weight

8200 kg

Loader Bucket capacity

1 Cu.m

Backhoe Bucket capacity

0.35 Cu.m

Max Dig Depth

5500 mm

Max. lift capacity

1460 kg

About Manitou MBL 745 HT Plus Overview

Manitou MBL 745 HT Plus is a well known Backhoe Loader in India. Manitou MBL 745 HT Plus in India is available at a competitive price range.With a decent max operating weight, this Manitou MBL 745 HT ...

Manitou MBL 745 HT Plus Specs & Features

Engine

Model4R1190TA-H.T Turbo Charged Water Cooled BS IV CEV

Engine Displacement4760 cc

Engine Power54.80 kW @ 2200 hp

Maximum torque400 Nm

Fuel TypeDiesel

Transmission TypeHydrostatic / Power Shuttle Transmission

Loader General

Dump heightRear Backhoe / Front Loader – Standard Hydraulic Dump mm

Load over height3871 mm

Hinge pin height4800 mm

Max reach at full height (bucket dumped)1996

Loader Bucket capacity1 Cu.m

Bucket breakout force6600 Kgf

Max Pay Load3700 Kg

Dump Angle51 Degree

Loader Arm Breakout Force1 kgf

Backhoe

Max dig depth5500 mm

Max working height5730 mm

Backhoe bucket capacity0.35 Cu.m

Bucket rotation194 Degree

Dipper tear out force3942 Kgf

Max lift capacity1460 Kg

Max Load Over Height3310 mm

Overall Dimension & Weight

Max operating weight8200 Kg

Transport length5800 mm

Width over stabilizer / bucket2450 mm

Wheelbase-

Minimum ground clearance280 mm

Height to top of cabin3100 mm

Manitou MBL 745 HT Plus EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹82,304

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹37,00,000
Interest Amount (12 %)	₹12,38,267
Total Amount Payable	₹49,38,267

Manitou MBL 745 HT Plus Pros and cons

Pros

Manitou MBL 745 HT Plus

Heavy-Duty Performance

Maximum Dig Depth & Lift Capacity

Cons

High Price

Fuel Consumption

Download Manitou MBL 745 HT Plus Brochure

Download Manitou MBL 745 HT Plus brochure online. Check out the Manitou MBL 745 HT Plus PDF brochure at Only Heavy with all features and specifications.

Manitou MBL 745 HT Plus Uses

Material Handling

Goods Delivery

Excavation

Digging
