Mahindra Earthmaster SX

Ex-Showroom Price

₹ 23.5 L - 23.99 L

Diesel

0.27 Cu.m

4959 mm

Download Mahindra Earthmaster SX Brochure

Download Mahindra Earthmaster SX brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of Mahindra Earthmaster SX

Max. reach at full height

1115 m

Max Operating Weight

7580 kg

Loader Bucket capacity

1.1 Cu.m

Backhoe Bucket capacity

0.27 Cu.m

Max Dig Depth

4959 mm

Max. lift capacity

3428 kg

About Mahindra Earthmaster SX Overview

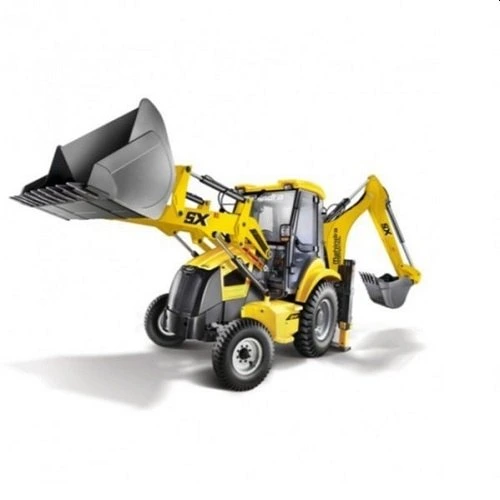

The Mahindra Earthmaster SX is a robust backhoe loader designed for construction, excavation, material handling, and trenching work on Indian job sites. It combines a powerful engine, efficient hydrau...

Mahindra Earthmaster SX Specs & Features

Engine

ModelMahindra DITEC Turbocharged Intercooled Diesel Engine

Engine Displacement3532 cc

Engine Power79.89 hp

Maximum torque306 Nm

Fuel TypeDiesel

Transmission TypeFour Speed 4 Forward, 4 Reverse

Loader General

Dump height2708 mm

Load over height3253 mm

Hinge pin height3482 mm

Max reach at full height (bucket dumped)1115

Loader Bucket capacity1.1 Cu.m

Bucket breakout force5199 Kgf

Max Pay Load1800 Kg

Dump Angle44 Degree

Loader Arm Breakout Force5594 kgf

Backhoe

Max dig depth4959 mm

Max working height6043 mm

Backhoe bucket capacity0.27 Cu.m

Bucket rotation181 Degree

Dipper tear out force3182 Kgf

Max lift capacity3428 Kg

Max Load Over Height4302 mm

Overall Dimension & Weight

Max operating weight7580 Kg

Transport length5869 mm

Width over stabilizer / bucket2404 mm

Wheelbase-

Minimum ground clearance321 mm

Height to top of cabin2978 mm

Mahindra Earthmaster SX EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

₹50,050

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount	₹22,50,000
Interest Amount (12 %)	₹7,53,000
Total Amount Payable	₹30,03,000

Mahindra Earthmaster SX Pros and cons

Pros

Turbocharged 74 HP engine with high torque offers good digging and loading power even under heavy loads.

Optimized hydraulics with high flow delivery improve cycle times and movement responsiveness during digging and loading.

Designed with a robust banana boom and thicker structural plates, ideal for rugged sites typical in India.

Cons

Fuel tank capacity is good but not class-leading compared with some competitors like CASE or Escorts which may have larger tanks.

The machine’s robust build makes it heavier, which may affect maneuverability in very tight spaces.

Some advanced features like GPS are listed in specs, but details on execution and capabilities are often not provided in spec sheets.

Download Mahindra Earthmaster SX Brochure

Download Mahindra Earthmaster SX brochure online. Check out the Mahindra Earthmaster SX PDF brochure at Only Heavy with all features and specifications.

Mahindra Earthmaster SX Uses

Material Handling

Goods Delivery

Excavation

Digging
