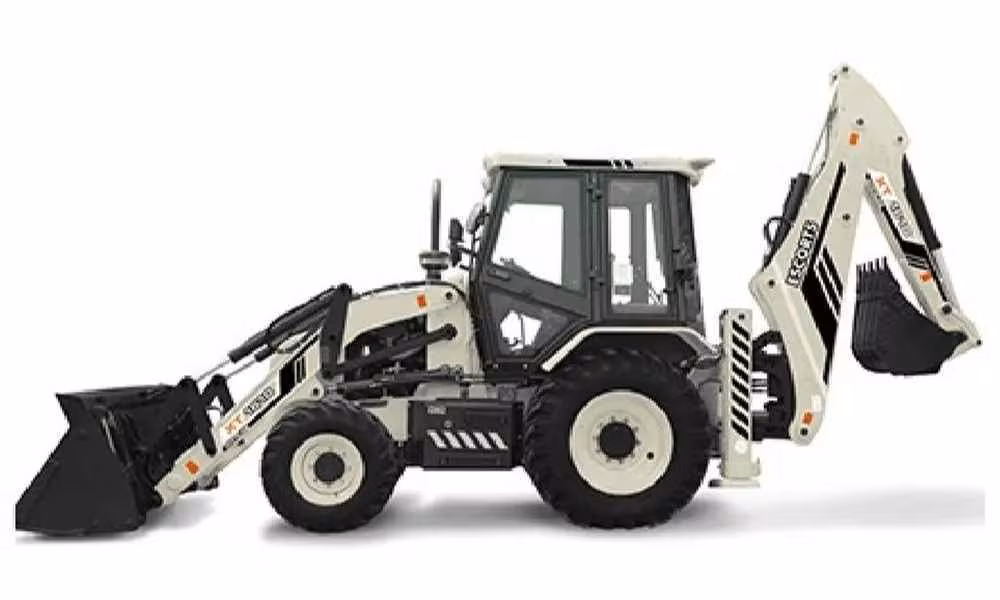

ESCORTS XT 1610 2WD

Ex-Showroom Price

₹ 21.99 L - 23.96 L

Diesel

Diesel

0.2 Cu.m

0.2 Cu.m

4770 mm

4770 mm

Download ESCORTS XT 1610 2WD Brochure

Download ESCORTS XT 1610 2WD brochure online. Check out the PDF brochure at Only Heavy with all features and specifications.

Key Specs of ESCORTS XT 1610 2WD

Max. reach at full height

Max. reach at full height

1220 m

Max Operating Weight

Max Operating Weight

8190 kg

Loader Bucket capacity

Loader Bucket capacity

1.2 Cu.m

Backhoe Bucket capacity

Backhoe Bucket capacity

0.2 Cu.m

Max Dig Depth

Max Dig Depth

4770 mm

Max. lift capacity

Max. lift capacity

1980 kg

About ESCORTS XT 1610 2WD Overview

The ESCORTS XT 1610 2WD is a medium-duty backhoe loader built by Escorts, designed for earthmoving, material handling, trenching, and construction work in moderate jobsite conditions. It uses a 76 HP ...

ESCORTS XT 1610 2WD Specs & Features

Engine

ModelAE4.286E-3A
Engine Displacement2900 cc
Engine Power76 hp
Maximum torque295 Nm
Fuel TypeDiesel
Transmission Typeynchromesh Reversing Shuttle (4F + 4R)

Loader General

Dump height3000 mm
Load over height3510 mm
Hinge pin height3700 mm
Max reach at full height (bucket dumped)1220
Loader Bucket capacity1.2 Cu.m
Bucket breakout force6425 Kgf
Max Pay Load1980 Kg
Dump Angle45 Degree
Loader Arm Breakout Force5777 kgf

Backhoe

Max dig depth4770 mm
Max working height6300 mm
Backhoe bucket capacity0.2 Cu.m
Bucket rotation187 Degree
Dipper tear out force3250 Kgf
Max lift capacity1980 Kg
Max Load Over Height4390 mm

Overall Dimension & Weight

Max operating weight8190 Kg
Transport length6280 mm
Width over stabilizer / bucket2380 mm
Wheelbase-
Minimum ground clearance350 mm
Height to top of cabin2880 mm

ESCORTS XT 1610 2WD EMI Calculator

Vehicle Price

Ex-showroom price can not be less than down payment

Down Payment

Interest Rate (%)

Loan Tenure (Months)

EMI

46,691

per month

Note: The EMI amount shown is based on the ex-showroom price, with a 20% down payment, a 12% interest rate, and a 60-months tenure. You can adjust these values to calculate an EMI that fits your budget.

Principal Amount20,99,000
Interest Amount (12 %)7,02,466
Total Amount Payable28,01,466

ESCORTS XT 1610 2WD Pros and cons

like

Pros

  • Proven 76 HP diesel engine and 4F/4R reversing shuttle make it easy to operate and maintain.
  • Good mix of loader bucket capacity and dig depth suits general construction, utility, and civil jobs.
  • Fixed-flow hydraulics and a simple mechanical layout keep running costs down compared with more complex systems.
  • like

    Cons

  • Exact cc is often not officially listed — you may need dealer confirmation for precise displacement figures.
  • Uses fixed-flow pump open-centre hydraulics, which can be less efficient in varied load conditions compared with variable-flow systems.
  • Often listed as BS-IV compliant, which may not match the newest regulatory norms in some zones.
  • Download ESCORTS XT 1610 2WD Brochure

    Download ESCORTS XT 1610 2WD brochure online. Check out the ESCORTS XT 1610 2WD PDF brochure at Only Heavy with all features and specifications.

    ESCORTS XT 1610 2WD Uses

    uses

    Material Handling

    uses

    Goods Delivery

    uses

    Excavation

    uses

    Digging

    uses

    Loading

    ESCORTS XT 1610 2WD Loan Offers

    location

    Explore ESCORTS XT 1610 2WD Alternatives

    Calculate your Monthly Fuel Cost

    The calculations provide an estimated amount, but actual figures may vary depending on local fuel prices, electricity rates, and other factors

    Daily Fuel Usage (Litres)

    48 Litres Per Day

    Daily Fuel Cost

    4560 Per Day

    Monthly Fuel Cost

    118560 Per Month

    Petrol pump

    Compare Top BackHoe Loaders

    Talk to Dealer

    Find nearest dealer in your area with us and fulfil your dreams by buying the best backhoe loader matching your needs.

    FAQs on ESCORTS XT 1610 2WD

    Do you have more questions?

    End-to-end payments and financial management in a single solution. Meet the right platform to help realize.

    What kind of work is the XT 1610 2WD best suited for?

    Is the XT 1610 2WD suitable for farm or rural use?

    What maintenance should I expect?

    Can optional attachments like a breaker or six-in-one bucket be fitted?

    How is operator comfort?
